Robopac Masterplat Table Stretch Machine
Product Description

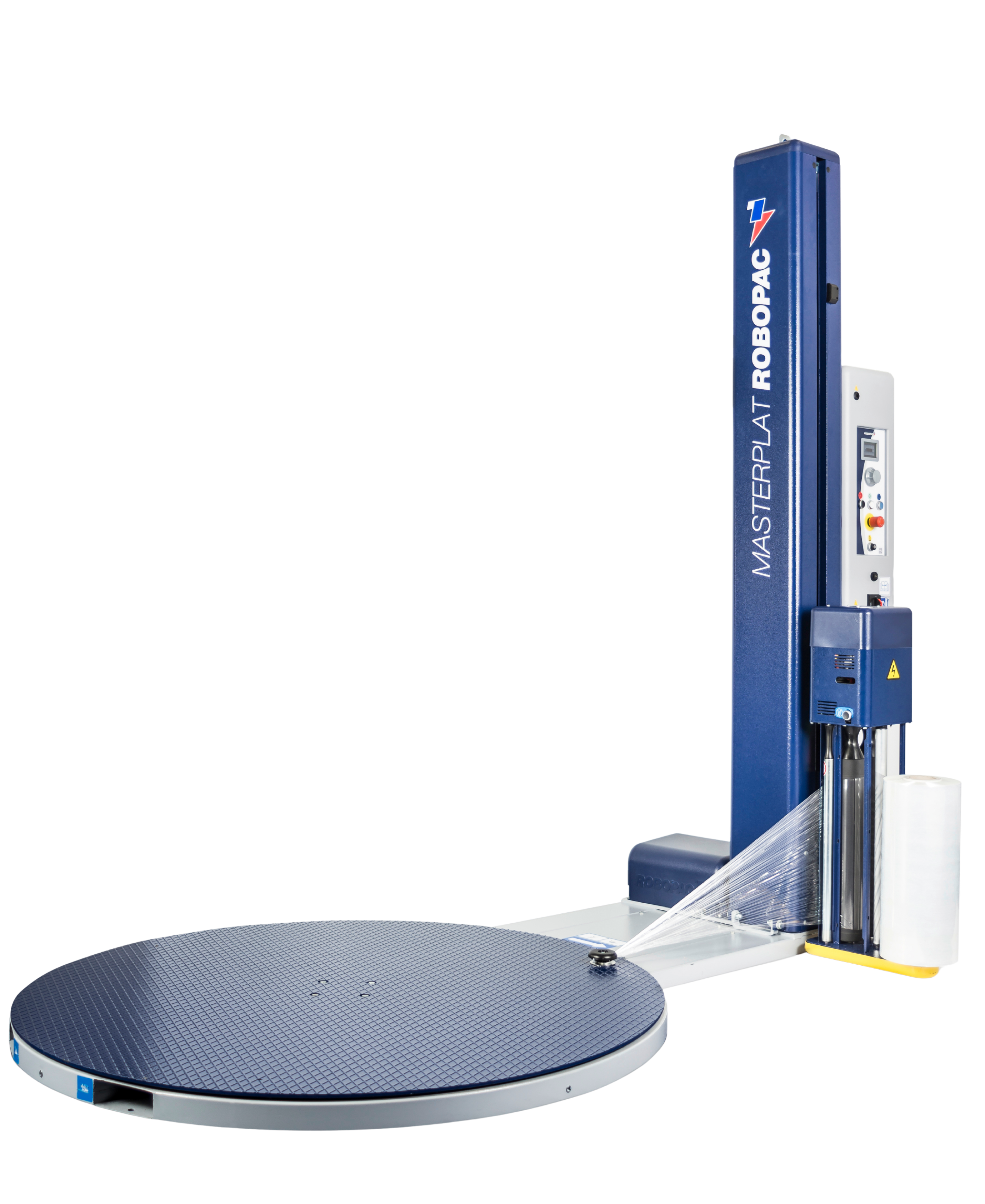

Robopac Masterplat Turntable Stretch Wrapping Machine is a semi-automatic wrapping solution developed to securely, stably, and economically wrap palletized products.
The machine is available with FRD mechanical brake or PGS motorized pre-stretch system options.
Thanks to the PGS pre-stretch system, the stretch film can be applied by extending it up to 300%.
This allows the film to be thinned up to 4 times, achieving up to 75% film savings.
In the FRD system, the film is tensioned in a controlled manner over the load with a mechanical brake, ensuring stable wrapping.

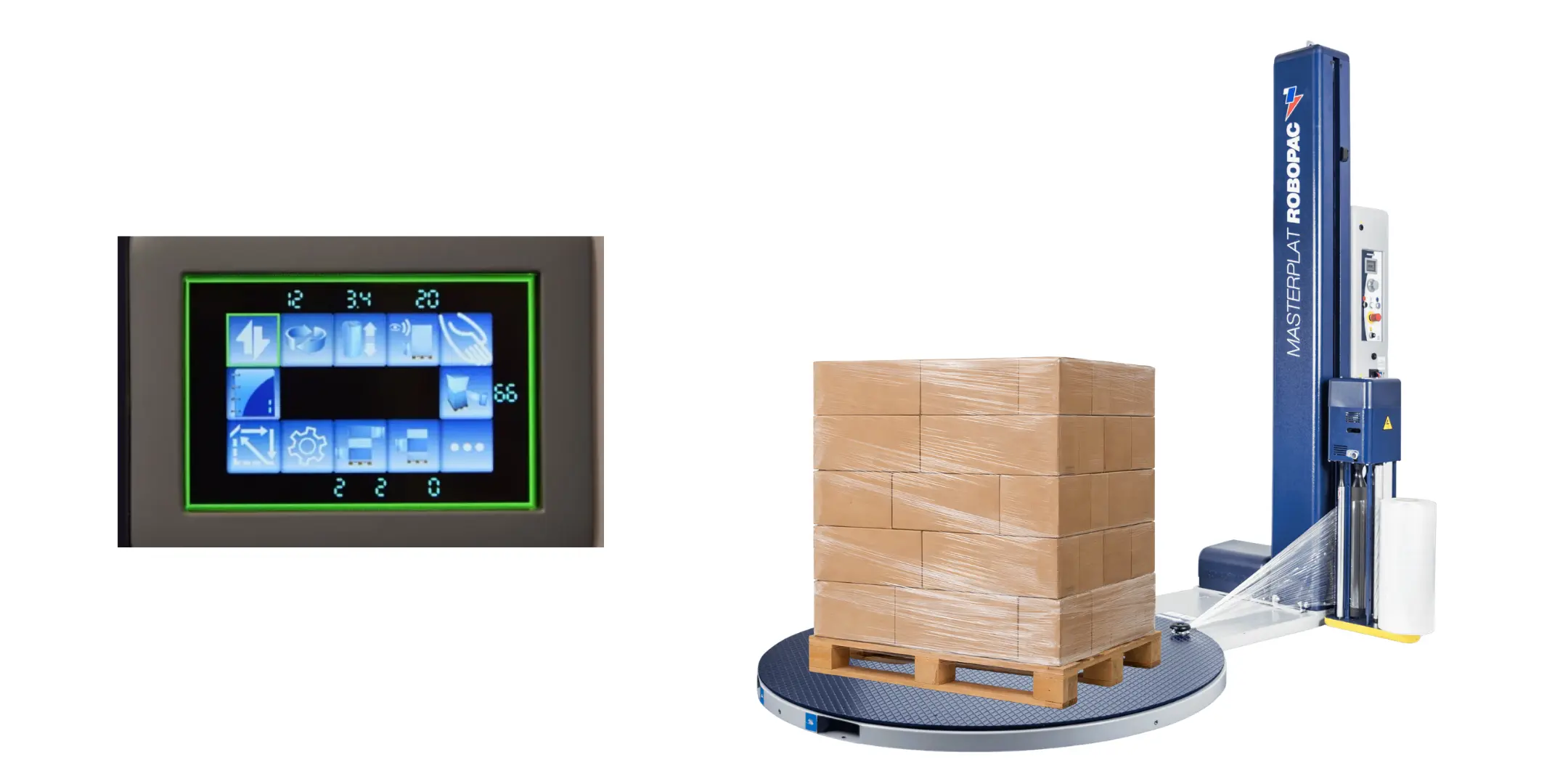

All wrapping parameters can be easily adjusted via the digital control panel, minimizing operator errors.
Advantages & Key Features
- FRD & PGS Stretch Options: Mechanical brake or motorized pre-stretch system alternatives.
- 300% Pre-Stretch (PGS): Maximum savings by extending stretch film up to 300%.
- Digital Tension Control: Film tension value can be adjusted digitally.
- Adjustable Wrapping Speed: Optionally increased up to 30 rpm.
- Turntable Speed Control: Digitally adjustable via the display.
- Film Carriage Speed Adjustment: Controlled via the panel.
- Automatic Reinforced Middle Wrapping: Extra reinforcement can be applied to the middle section of the pallet.
- Optional Automatic Weighing System: Measures load weight and provides output.
- Optional Pneumatic Top Press: Suitable for light and unstable loads.
Applications
Robopac Masterplat is widely preferred in logistics, food, beverage, chemical, packaging, construction, and manufacturing industries.
Thanks to its different stretching systems and adjustable speed parameters, it provides stable and secure wrapping suitable for all pallet types.
Its semi-automatic structure makes it an ideal solution for medium and high-volume operations.
Technical Details & Options
| Feature | Value |
|---|---|
| Film Stretch System | FRD mechanical brake / PGS motorized pre-stretch |
| Maximum Pre-Stretch | 300% (PGS system) |
| Film Saving | Up to 75% |
| Wrapping Speed | Optionally up to 30 rpm |
| Turntable & Film Carriage Speed | Adjustable via digital display |
| Wrapping Height | 2200 mm (optional high mast options) |
| Turntable Diameter | 1650 mm |
| Maximum Load Weight | 2000 kg |
| Control Panel | Digital – programmable |
| Options | Automatic weighing system, pneumatic top press, high mast, pallet truck ramp |
Why Choose This Machine?
Robopac Masterplat Turntable Stretch Wrapping Machine stands out with its flexible stretching options, digital speed control, and high-saving pre-stretch technology.
Offered with Pakmak Packaging assurance, this model provides an economical and reliable pallet wrapping solution with low film consumption, stable wrapping, and long-lasting mechanical structure.
