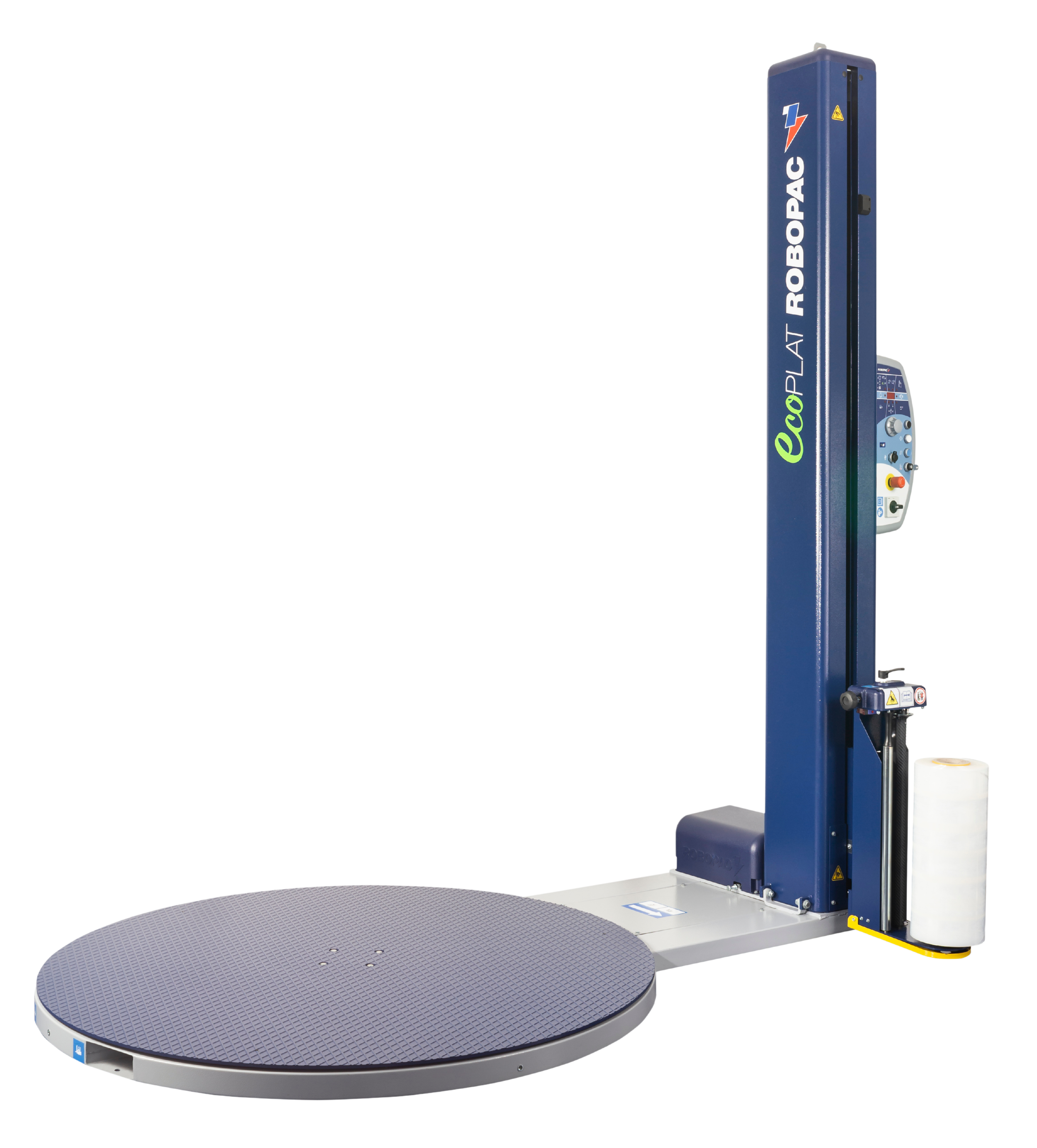

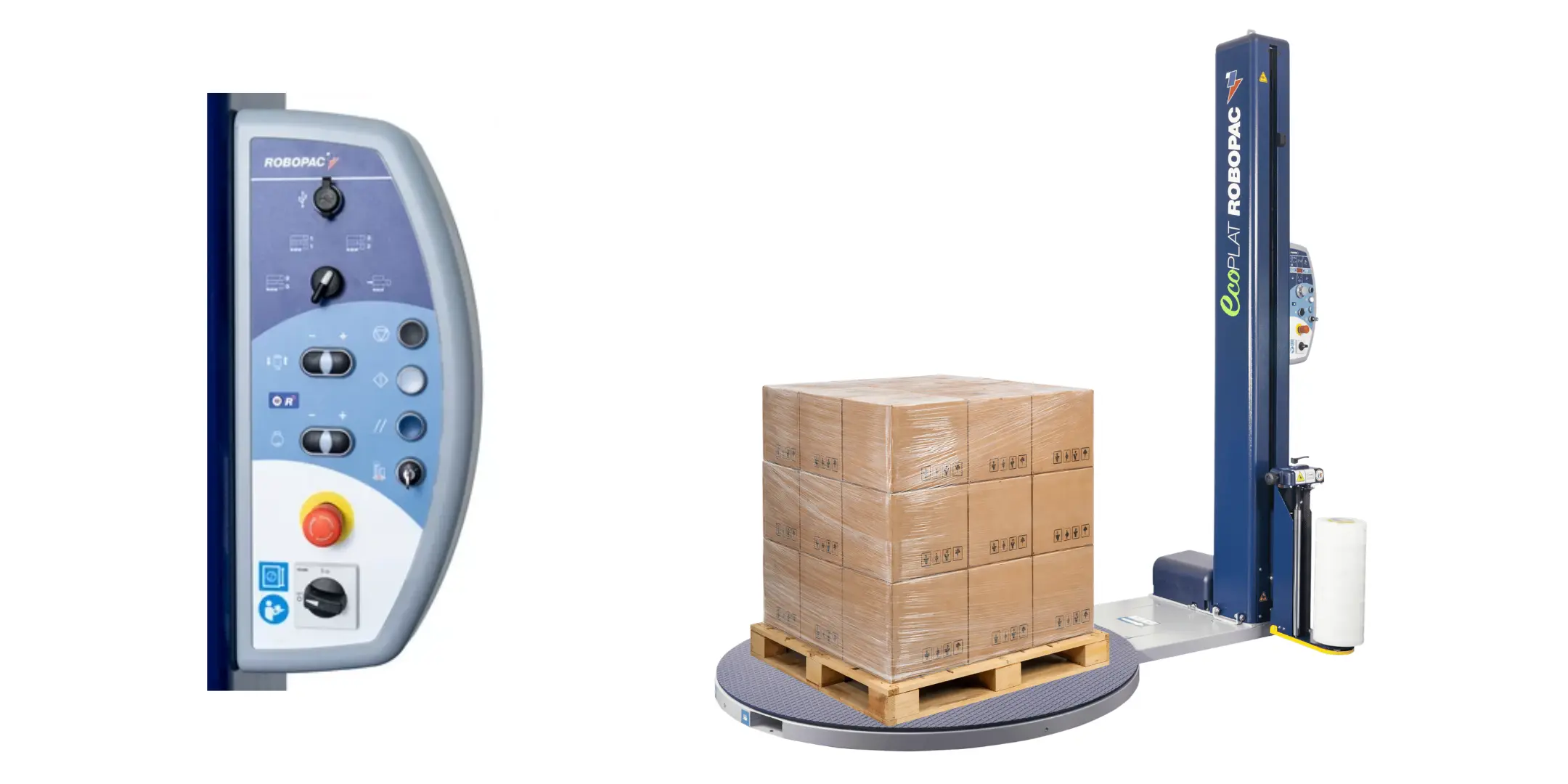

Robopac Eco Plat Table Stretch Machine
Product Description
Robopac Ecoplat Turntable Stretch Wrapping Machine is a semi-automatic wrapping solution designed to securely, stably, and economically wrap palletized loads.
The Ecoplat series is available in two different model options: BASE and FRD.
The mechanical brake stretch system available in the FRD model allows the stretch film to be tensioned in a controlled manner over the product.
Thanks to this system, a film pre-stretch effect is created, resulting in more stable wrapping and optimized film consumption.
The BASE model, on the other hand, offers an economical and durable solution for basic wrapping needs.
With its compact structure, ease of use, and digitally adjustable functions, Ecoplat ensures high efficiency in daily palletizing operations.
Advantages & Key Features
- Two Model Options: BASE (standard) and FRD (mechanical brake stretch system).
- FRD Mechanical Stretch System: Tensions the stretch film on the load to create a pre-stretch effect and improve wrapping stability.
- Adjustable Wrapping Height: Optional increase up to 240 cm.
- Pallet Truck Compatible Design: Can be used with a ramp or installed in-ground.

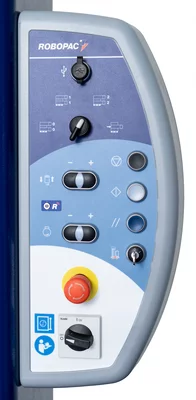

- Digital Speed Settings: Turntable speed can be adjusted via the control panel.
- Film Carriage Speed Control: Adjustable via digital display.
- Reinforced Middle Wrapping: Load stability can be enhanced by manually increasing mid-wrap cycles.
- Optional Automatic Weighing System: Measures pallet weight during wrapping and provides output.
Applications
Robopac Ecoplat is preferred in logistics, food, beverage, chemical, packaging, construction, and manufacturing industries for preparing pallets safely for shipment.
Thanks to its economical structure and ease of use, it is especially ideal for small and medium-sized businesses as a pallet wrapping solution.
Technical Details & Options
| Feature | Value |
|---|---|
| Model Options | Ecoplat Base / Ecoplat FRD |
| Film Stretch System | Mechanical brake stretch system (FRD model) |
| Wrapping Height | 2200 mm (optional 2400 mm) |
| Turntable Diameter | 1650 mm |
| Maximum Pallet Weight | 2000 kg |
| Turntable & Film Carriage Speed | Adjustable via digital control panel |
| Reinforced Middle Wrapping | Manually adjustable |
| Options | Pallet truck ramp, in-ground installation kit, automatic weighing system, high mast |
Why Choose This Machine?
Robopac Ecoplat Turntable Stretch Wrapping Machine simplifies pallet wrapping processes with its simple structure, durable mechanical system, and digital control advantages.
Offered with Pakmak Packaging assurance, the Ecoplat series provides an economical, practical, and long-lasting solution with low investment cost, safe wrapping performance, and optional equipment.
