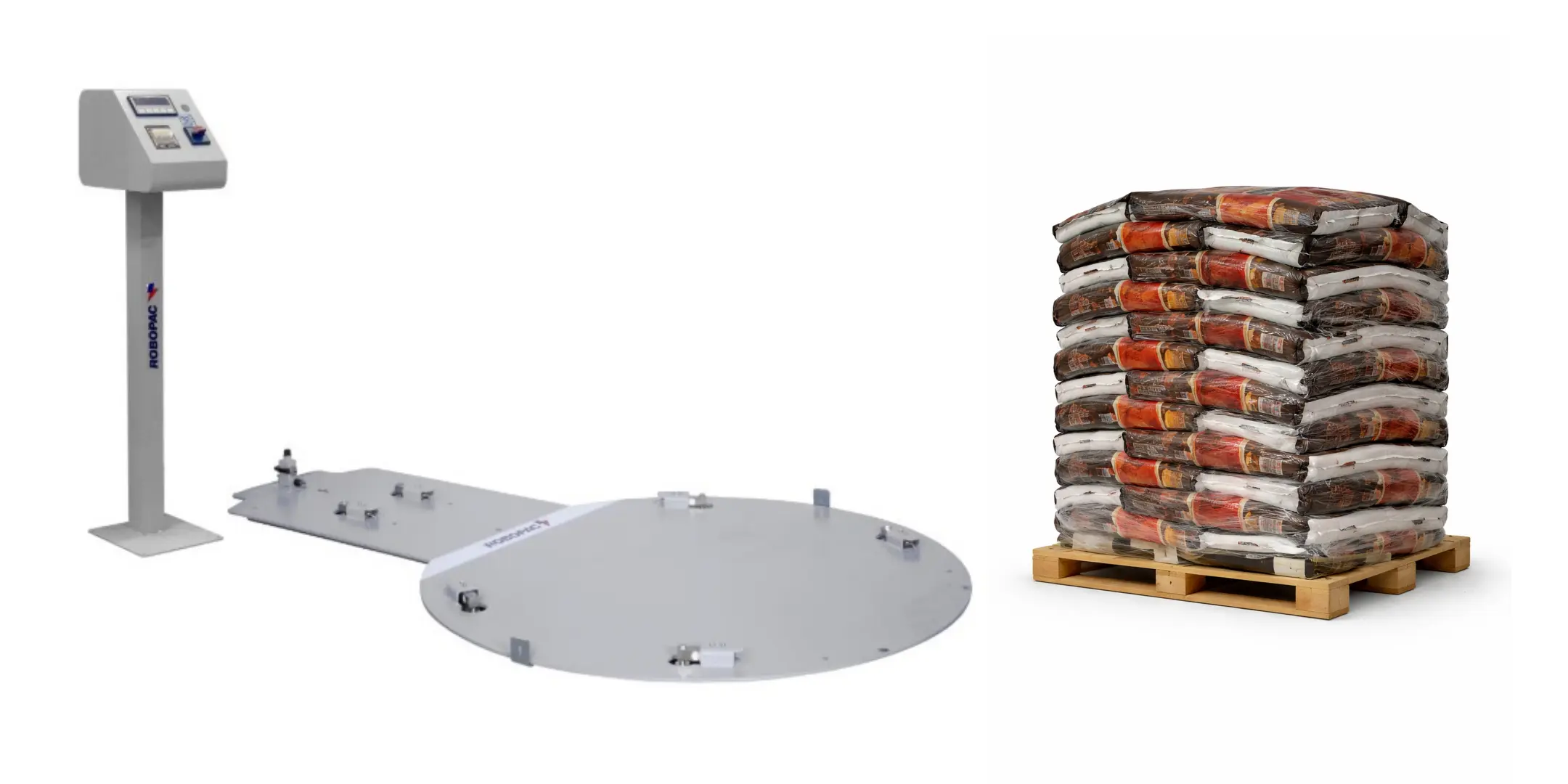

Robopac Weighing System Pallet Stretching Machine
Product Description
Robopac Pallet Stretch Wrapping Machine with Weighing System is an innovative solution equipped with the ability to measure pallet weight in real time during the wrapping process.
The integrated weighing system developed by Robopac performs both wrapping and weighing operations in a single step.
This allows businesses to increase efficiency and save time on production lines without the need for additional weighing equipment.
Thanks to the load cells placed under the machine, pallet weight is measured with high precision and displayed instantly on the machine screen.
Additionally, the machine provides maximum film savings with its 400% pre-stretch system — reducing daily consumption from 5 rolls of stretch film to just 1 roll.
Offering accuracy, speed, and cost advantages in industrial production lines, this system stands out in both logistics and quality control processes.
Advantages & Key Features
- Integrated Weighing System: Automatically measures pallet weight during wrapping.
- High Accuracy: ±0.1% precision with industrial load cell sensors.
- 400% Pre-Stretch System: Reduces stretch film consumption up to 5 times.
- Time Saving: Combines wrapping and weighing in a single operation.
- Compact Design: Easy integration into production lines without additional equipment.
- Digital Display: Weight data and machine parameters can be monitored on screen.
- Advanced Safety: Safe weighing with overload and vibration sensors.
- Cost Efficiency: Energy-saving operation with intelligent motor control system.
Applications
Robopac Pallet Stretch Wrapping Machine with Weighing System is designed for all production and logistics facilities where weight tracking is critical.
It is widely used in food, chemical, logistics, warehousing, packaging, home appliances, construction materials, and automotive industries.
By combining wrapping and weighing processes, it provides operational efficiency and quality control advantages.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Model | Robopac Scale Weighing System Kit |
| Machine Type | Turntable Pallet Stretch Wrapping Machine (Integrated Weighing) |
| Weighing Capacity | Max. 2000 kg |
| Weighing Accuracy | ±0.1% |
| Pre-Stretch Ratio | 400% (dual motor, adjustable) |
| Film Thickness | 7–35 microns |
| Pallet Size Compatibility | Up to 1200 × 1200 mm |
| Control System | PLC + Digital Display |
| Energy Efficiency | Optimized system with intelligent motor management |
| Industry 4.0 Compatibility | Yes (data transfer & production monitoring) |
Why Choose This Machine?
Robopac Pallet Stretch Wrapping Machine with Weighing System digitalizes your production line by providing both efficient wrapping and accurate weight control.
While minimizing stretch film consumption with its 400% pre-stretch technology, it eliminates risks caused by logistics errors with its integrated weighing system.
Combined with Pakmak Packaging’s sales, installation, and technical support expertise, this system offers a modern solution that brings together speed, accuracy, and cost savings.
