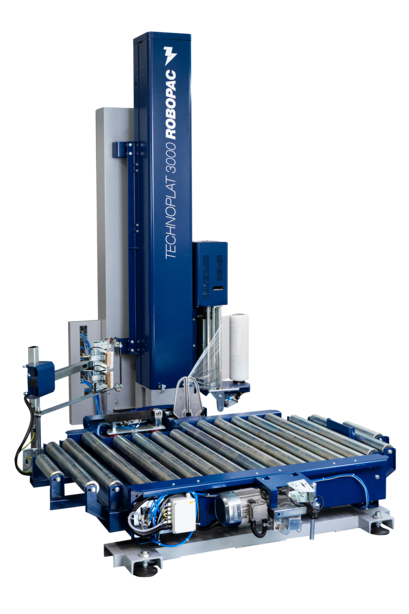

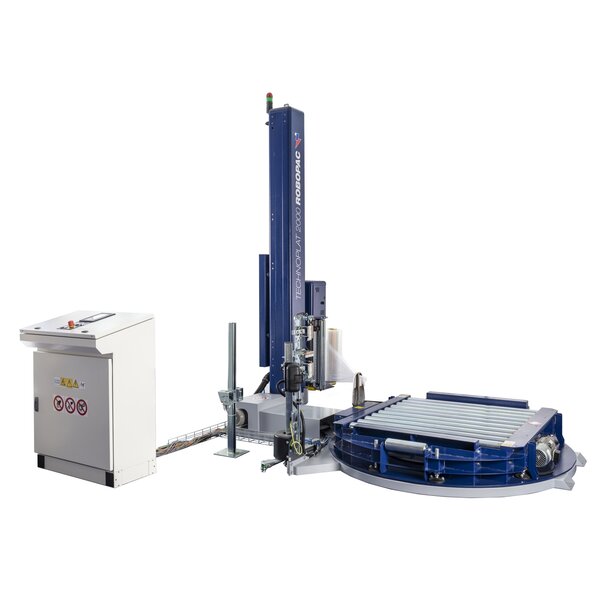

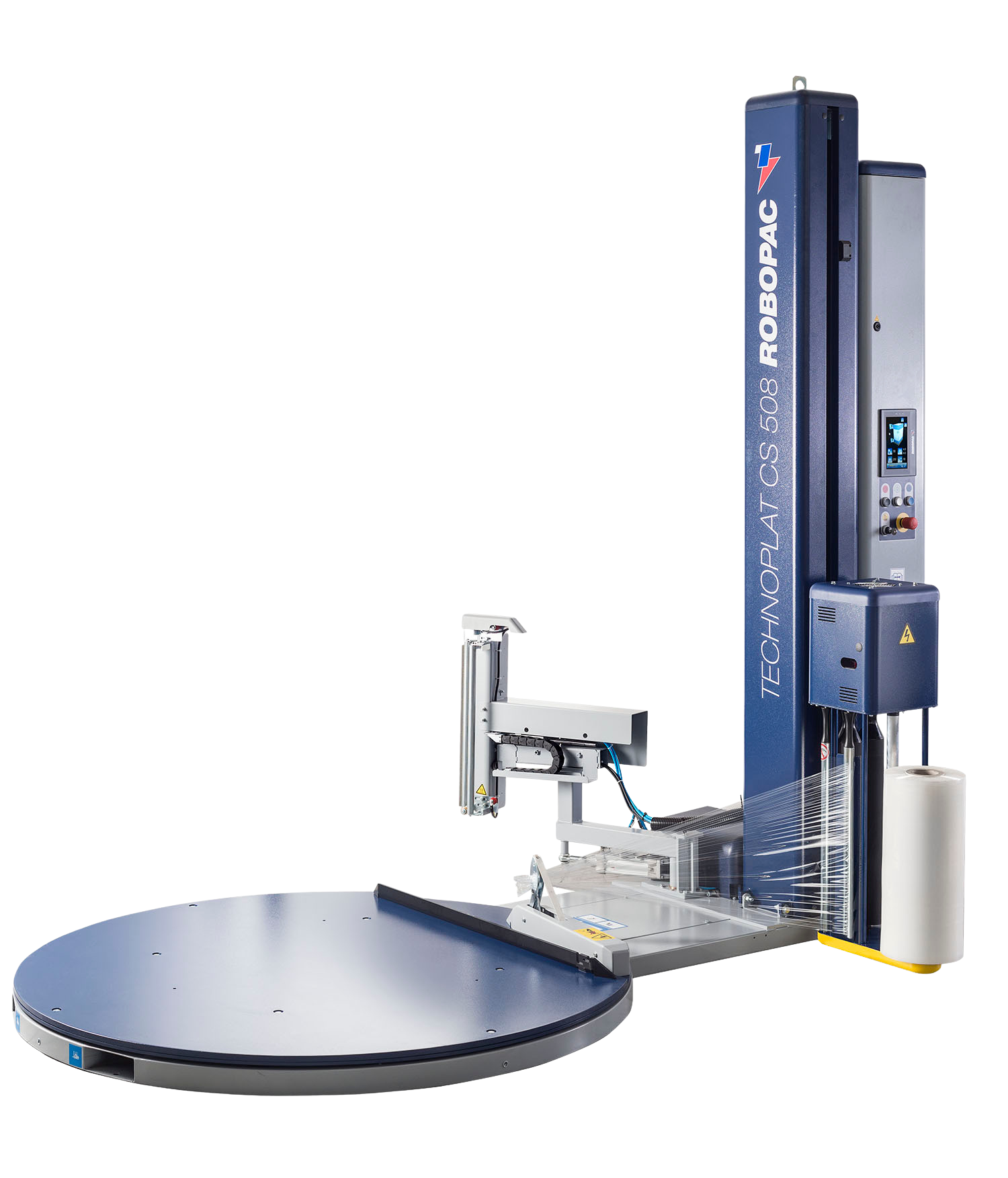

Robopac Technoplat Table Stretch Machine
Product Description
Robopac Technoplat Turntable Stretch Wrapping Machine is an advanced pallet wrapping system developed for high-volume production lines, capable of fully automatic, remote-controlled, and operator-free operation. After the forklift operator places the pallet on the turntable, the machine is started via remote control; the stretch film is automatically attached to the pallet, wrapping is completed, and the film is cut and sealed.
This eliminates the need for the operator to leave the vehicle and provides up to 50% time savings per pallet compared to semi-automatic systems.
With its dual-motor 400% pre-stretch system, Technoplat can extend 1 meter of stretch film up to 5 meters, ensuring high wrapping quality and low film consumption.
Advantages & Key Features
- Fully Automatic Operation: Film attachment, cutting, and sealing are performed without operator intervention.
- Remote Control: The forklift operator can control the machine without leaving the vehicle.
- 400% Dual Motor Pre-Stretch: Provides up to 80% savings in stretch film consumption.
- High-Speed Wrapping: Continuous and fast cycle times for intensive production environments.
- Automatic Film Management: Film clamping, cutting, and sealing are performed automatically.

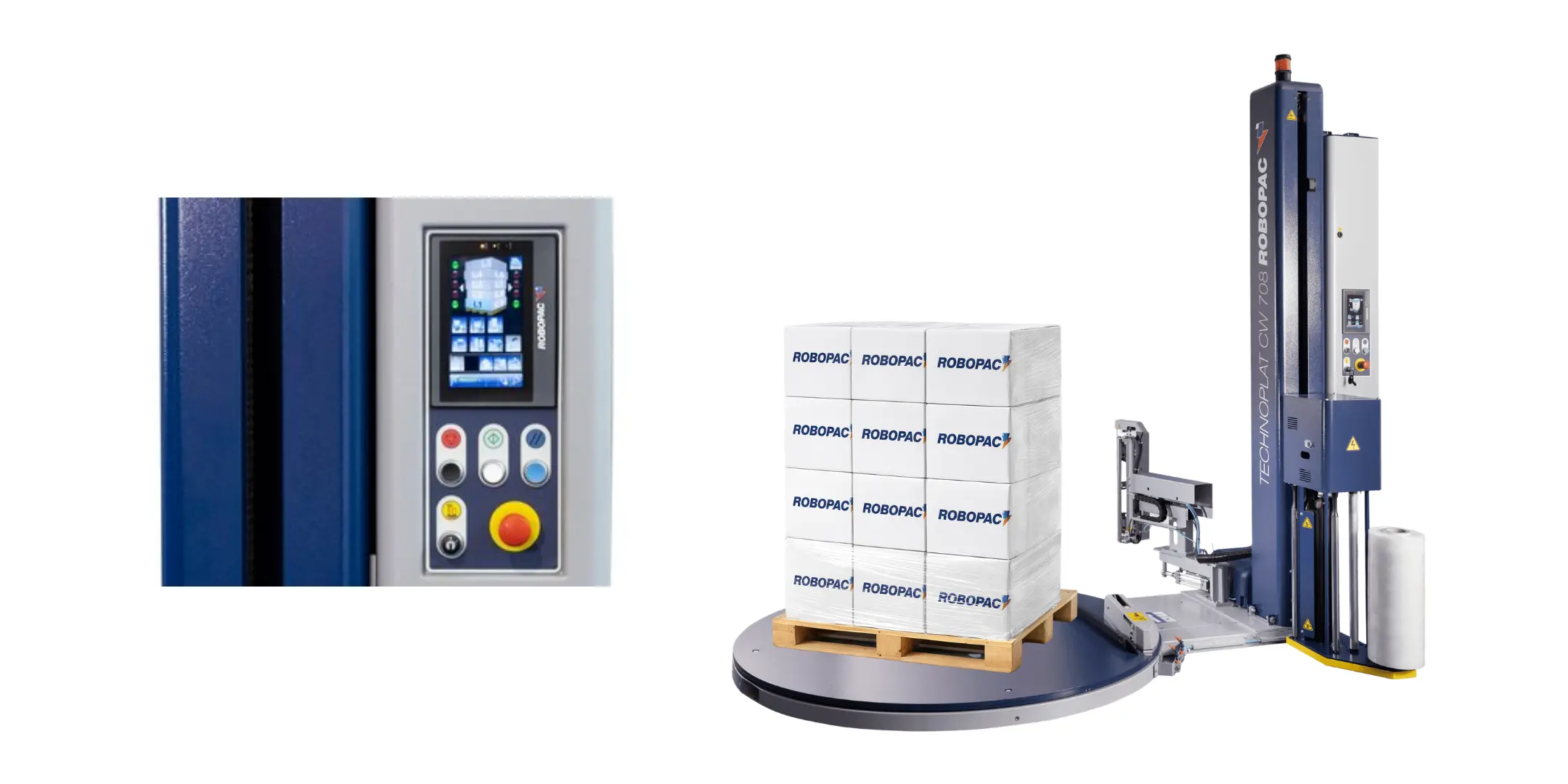

- Digital Control Panel: Wrapping programs, speed, and tension settings can be easily managed via the screen.
- Pallet Truck Compatible: Flexible use with optional ramp or in-ground installation.
Applications
Robopac Technoplat is an ideal solution for all industries requiring high speed and full automation. Main application areas include food, beverage, chemical, logistics, packaging, construction materials, home appliances, and automotive sectors.
Thanks to its structure that minimizes operator dependency, it ensures production continuity in shift-based and high-intensity facilities.
Technical Details & Options
| Feature | Value |
|---|---|
| Operation Type | Fully automatic – remote controlled |
| Film Stretch Unit | FRD / PDS / PVS – dual motor 400% pre-stretch |
| Film Saving | 1 m = 5 m usage (up to 80%) |
| Turntable Diameter | 1650 mm (optional XL turntable 2400 mm) |
| Wrapping Height | 2200 mm (optional 3100 mm) |
| Maximum Pallet Weight | 2000 kg |
| Film Management | Automatic clamping, cutting, and sealing |
| Options | Top press, roping, automatic weighing, Cold Kit, in-ground turntable |
Why Choose This Machine?
Robopac Technoplat minimizes labor requirements with its fully automatic operation, while maximizing operational speed and safety. Remote control operation improves operator ergonomics, and the 400% pre-stretch technology significantly reduces stretch film costs.
Offered with Pakmak Packaging assurance, Technoplat is the ultimate turntable stretch wrapping solution for businesses seeking
high efficiency, low operating costs, and long-lasting performance.
