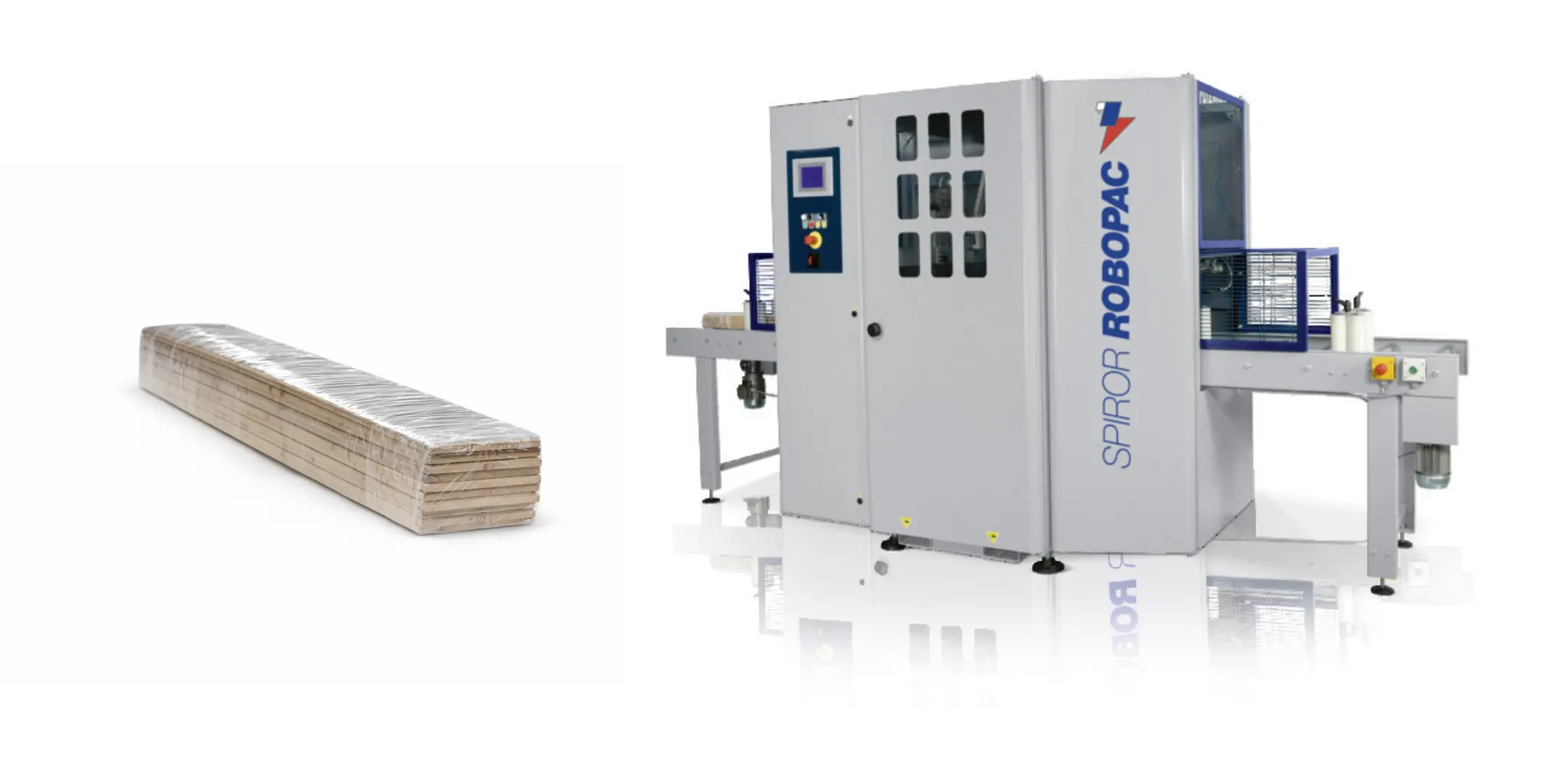

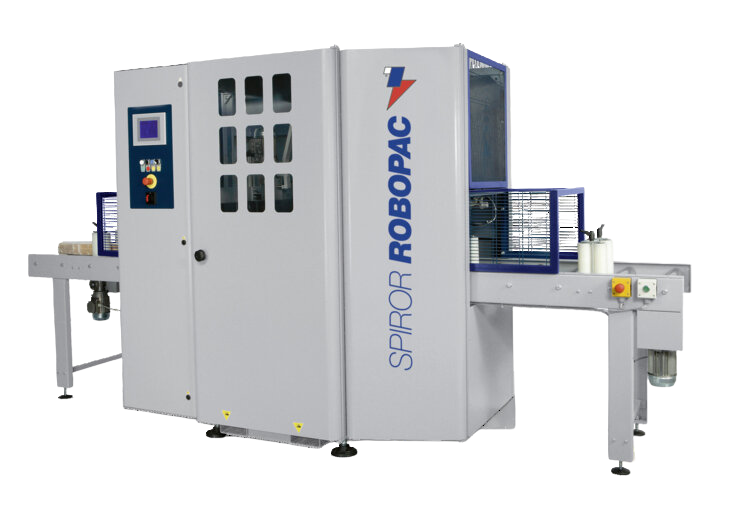

Robopac Spiror High Speed Fully Automatic Horizontal Stretch Machine
Product Description
Robopac Spiror Series High-Speed Fully Automatic Horizontal Stretch Wrapping Machine,
is an advanced packaging solution developed for the fully automatic horizontal wrapping of non-palletized products such as metal, wood, plastic, carpets, profiles, and similar materials.
The Spiror series, capable of operating with automatic infeed via conveyor systems, is ideal for lines requiring high speed, stable wrapping, and continuous production.

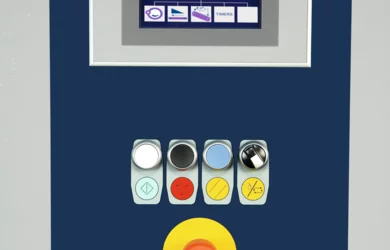

Thanks to its PLC-controlled structure, wrapping speed, tension levels, and rotation parameters can be precisely adjusted according to the product type.
The automatic cutting and clamping system ensures a continuous and standardized wrapping process without the need for operator intervention.
Advantages & Key Features
- Fully Automatic Line Integration: Continuous operation with automatic feeding via conveyor systems.
- High Wrapping Speed: Stretch film rotation speed can reach up to 260 rpm.
- Wide Product Diameter Range: Compatible with different products with 30 cm, 40 cm, 60 cm, and 90 cm diameter options.
- Digital Stretch Tension Control: Product-specific wrapping settings can be precisely adjusted.
- Automatic Cutting & Clamping: Film is automatically cut and secured with an air-operated piston system.
- Adjustable Conveyor Height: Easy integration into different production lines.
- Mobile Design: Easy relocation with a 4-leg wheeled structure.
- Compatibility with Oval & Circular Products: Optional attachments allow wrapping of products with different geometries.
Applications
The Robopac Spiror Series is used in all applications requiring horizontal wrapping in industries such as furniture, wood, plastic, textile, carpet, profiles, pipes, panels, aluminum, and construction materials.
It ensures safe wrapping, transportation, and storage of non-palletized products with high speed, low film consumption, and maximum stability.
Especially in mass production lines, it provides significant time and labor savings compared to manual wrapping.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Machine Type | High-speed fully automatic horizontal stretch wrapping |
| Product Diameter Range | Ø 300 – 900 mm (optional different diameters) |
| Maximum Film Rotation Speed | 260 rpm |
| Feeding System | Automatic conveyor feeding |
| Film Cutting | Automatic, pneumatic piston system |
| Control System | PLC controlled, digitally adjustable |
| Mobility | Wheeled mobile body |
| Options | Oval & circular product attachment, additional conveyor modules |
Why Should You Choose This Machine?
Robopac Spiror Series High-Speed Fully Automatic Horizontal Stretch Wrapping Machine offers speed, consistent quality, and film savings in the packaging of non-palletized products.
Thanks to its automatic cutting and clamping system, it minimizes the need for operators while increasing production continuity.
With its high-speed capacity, adjustable tension control, and flexible configuration options, it perfectly adapts to the needs of different industries.
With Robopac technology and Pakmak Ambalaj’s sales and service assurance, it provides a long-lasting and highly efficient solution for your horizontal wrapping processes.
