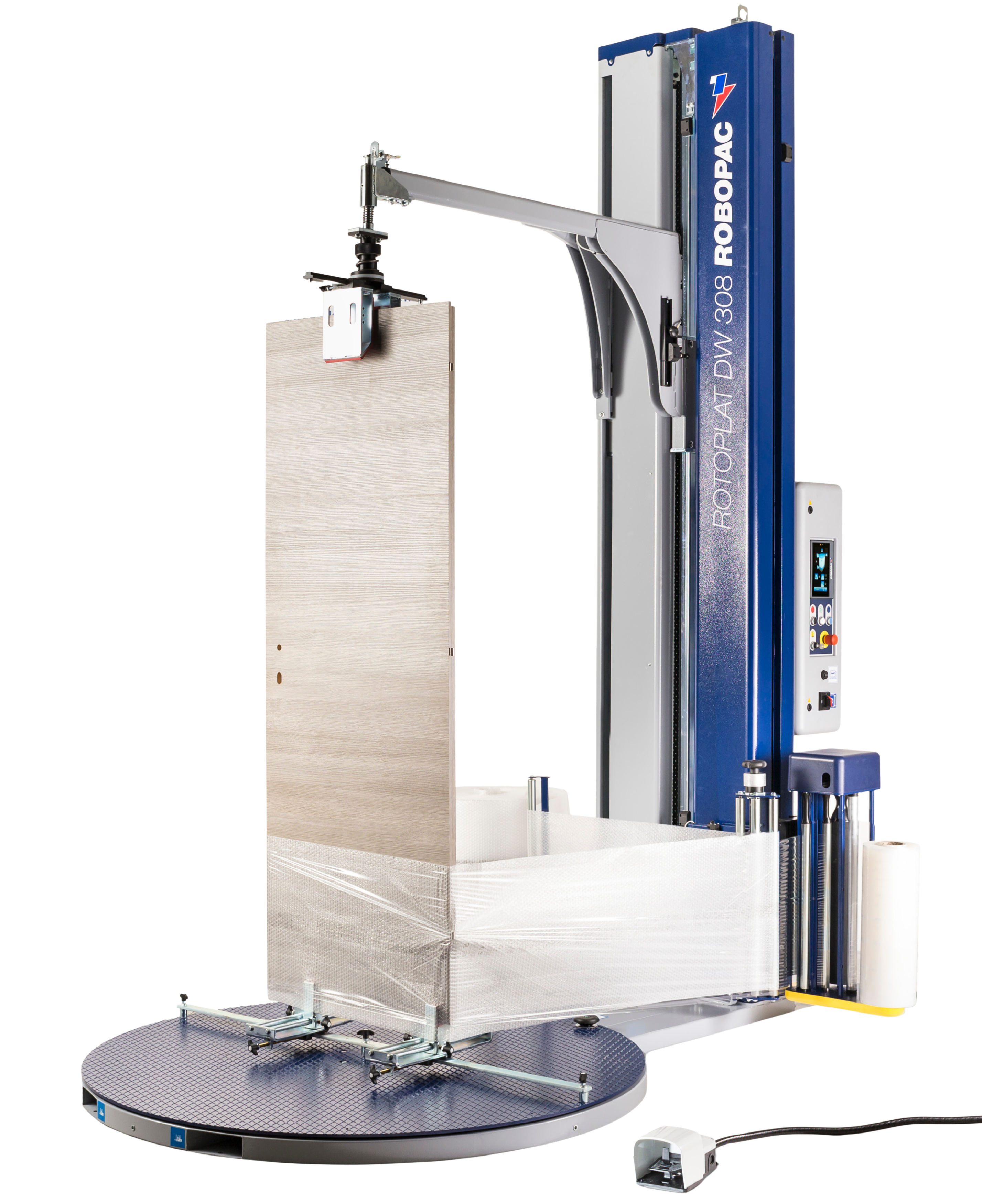

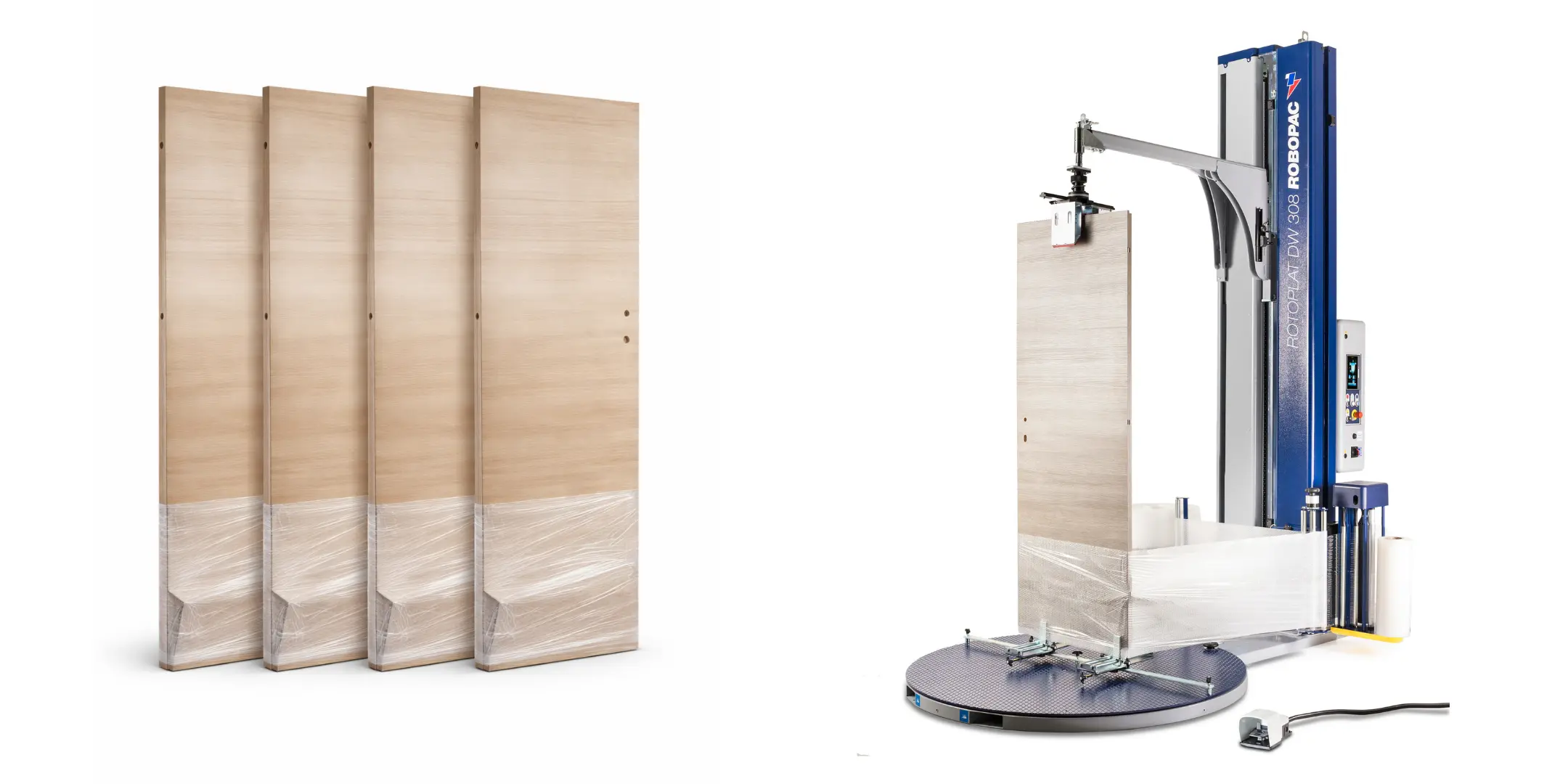

Robopac Rotoplat DW Table Pallet Stretch Machine
Product Description
Robopac Rotoplat DW Turntable Stretch Wrapping Machine, is a model specifically developed for
doors, windows, and similar products that cannot stand upright.
Since vertical wrapping is not possible for such products, the Rotoplat DW model uses an
automatic top and bottom clamping system to secure the product onto the turntable.
This allows the product to be safely wrapped in an upright position.
The machine is also equipped with a 400% pre-stretch unit;
thanks to this system, the stretch film can be extended up to 5 times, providing significant film savings.
With the optionally integrated bubble wrap unit, your products are protected both internally and externally for maximum protection.
The Rotoplat DW model can be easily controlled via a digital screen or foot pedal, offering a precise and safe wrapping process.
Advantages & Key Features
- Special Design: Developed for safe wrapping of doors, windows, and products that cannot stand vertically.
- Top & Bottom Clamping System: Secures the product onto the turntable for stable wrapping.
- 400% Pre-Stretch Unit: Stretch film can be extended up to 5 times, significantly reducing film consumption.
- Optional Bubble Wrap Unit: Provides additional protection by wrapping inner sections during the process.
- Vertical Wrapping: Enables wrapping in upright position thanks to the special fixing system.
- User-Friendly Control: Operated via digital screen or foot pedal.
- Industrial Durability: Long-lasting, low-maintenance structure suitable for intensive production environments.
- High Energy Efficiency: Minimal energy consumption with intelligent motorized pre-stretch system.
Applications
Robopac Rotoplat DW is specifically designed for
door, window, panel, furniture, and construction component manufacturers.
Since these products generally cannot stand upright, processing them with standard pallet wrapping machines is difficult.
The top and bottom clamping system of Rotoplat DW makes it possible to wrap such products in a
vertical position.
With the optional bubble wrap system, product surfaces are protected against impact, dust, and moisture, increasing transportation safety.
Technical Details & Options
| Feature | Value |
|---|---|
| Product Fixing System | Automatic top & bottom pneumatic clamping system |
| Wrapping Position | Vertical position wrapping |
| Film Stretch System | 400% motorized pre-stretch – Power Pre-Stretch |
| Film Saving | Up to 5 times (1 m = 5 m usage) |
| Control System | Digital screen and foot pedal control |
| Bubble Wrap Unit | Optional – provides additional internal protection |
| Maximum Product Size | Custom configuration based on door/window dimensions |
| Maximum Pallet Weight | 2000 kg |
| Options | Bubble wrap unit, automatic film cutter, special fixing kit |
Why Choose This Machine?
As Pakmak Packaging, we offer specialized solutions for products that cannot be wrapped vertically with the Robopac Rotoplat DW Turntable Stretch Wrapping Machine.
Thanks to the top and bottom clamping system, your products are wrapped securely and stably.
While reducing film costs with 400% pre-stretch technology, the optional bubble wrap unit ensures maximum protection.
Rotoplat DW is the most professional solution for manufacturers seeking a precise, aesthetic, and sustainable wrapping process.
