Robopac Robotape Tbda Automatic Box Sealing Machine
Product Description

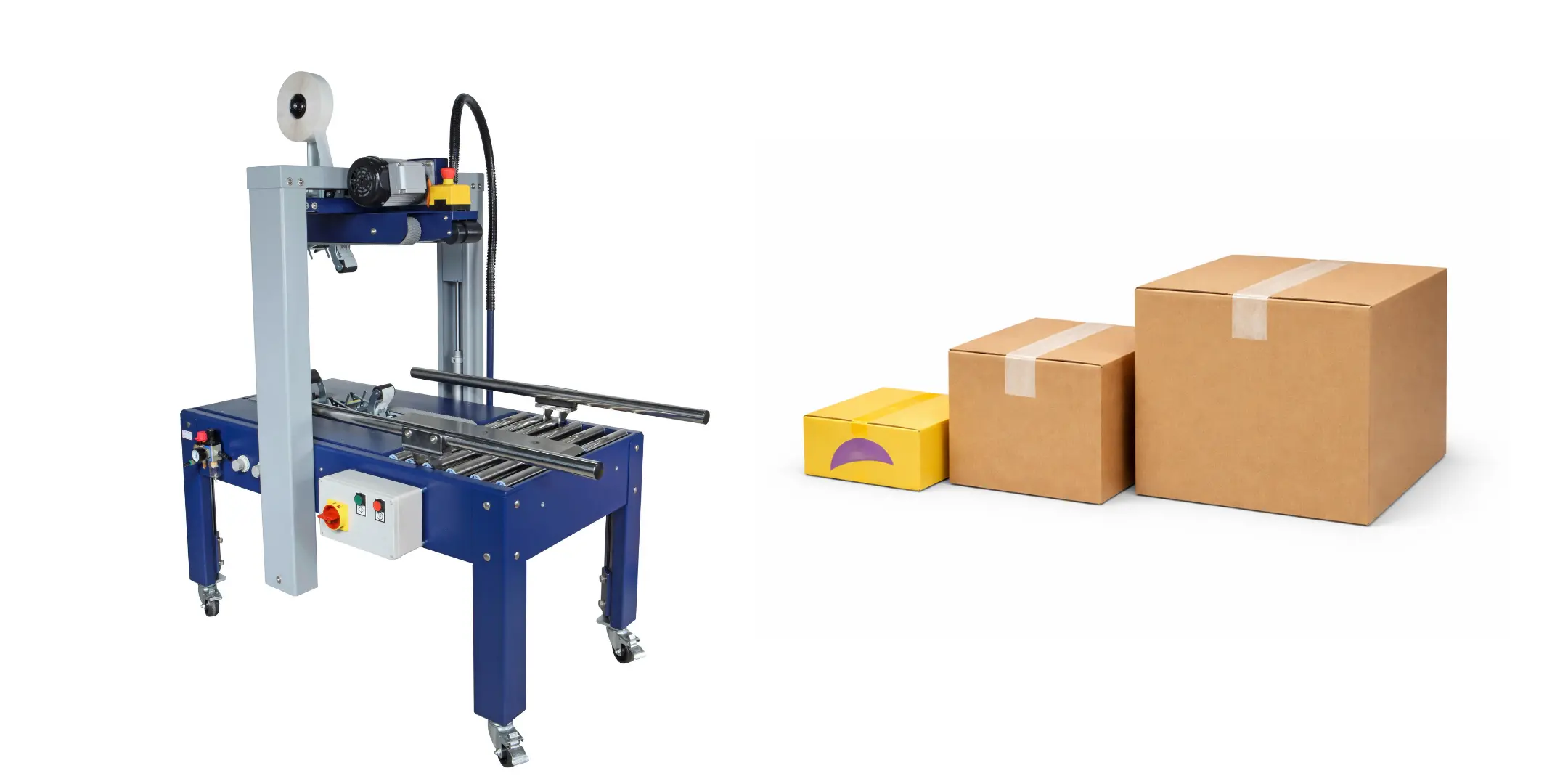

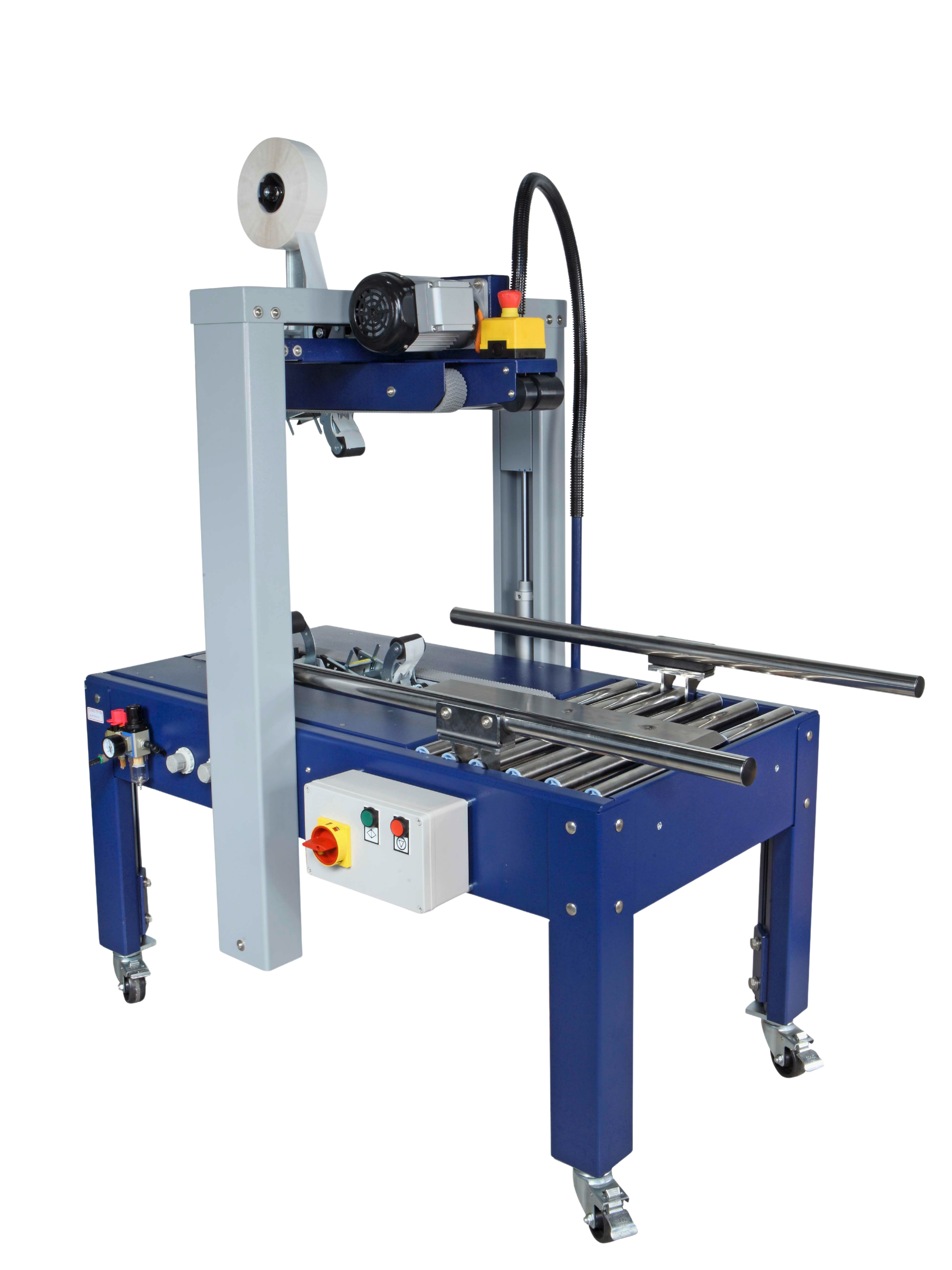

Robopac Robotape TBDA Automatic Box Sealing Machine with Auto Size Adjustment,
is a semi-line case sealing system that automatically detects different box sizes without manual adjustment and performs
top and bottom flap sealing.
The dimensions of the boxes fed into the machine are automatically detected by sensors, and the sealing process is completed without operator intervention.
The Robotape TBDA series consists of two main model groups: TBDA and A HD.
In both models, boxes are fed manually into the machine, while size detection and sealing operations are carried out fully automatically.
Advantages & Key Features
- Automatic size detection system eliminates the need for manual adjustment.
- Boxes of مختلف sizes can be sealed continuously on a single machine.
- Boxes are manually fed into the machine, while sealing is fully automatic.
- Top and bottom sealing is completed in a single pass.
- Standard 50 mm top and bottom sealing heads are included.
- 75 mm tape heads are available as an option.
- Maximum 50 kg box handling capacity.
Model Options & Size Ranges
Robotape TBDA
- TBDA 50: Maximum box size 50 × 50 cm (W × H)
- TBDA 65: Maximum box size 65 × 65 cm (W × H)
Robotape A HD
- A HD 65: Maximum box size 65 × 65 cm (W × H)
- A HD 80: Maximum box size 80 × 80 cm (W × H)
- In the A HD model, the frame can be automatically moved up or down via a color touchscreen control panel.
Applications
Robopac Robotape TBDA is preferred in industries such as
food, cosmetics, pharmaceuticals, e-commerce, logistics, packaging, and white goods,
where automatic sealing of boxes with varying sizes is required.
Thanks to its structure that does not require manual adjustment, it provides high flexibility in production lines with variable product dimensions.
Why Choose Robopac Robotape TBDA?
Robopac Robotape TBDA Automatic Box Sealing Machine eliminates the need for manual adjustments with its automatic size detection technology and ensures
speed, accuracy, and operational continuity in box sealing processes.
With TBDA and A HD model options, it adapts to different box sizes, making it an ideal solution for flexible production lines.
As Pakmak Ambalaj, we provide pre-sales consultancy, installation, training, and technical service support for
Robopac Robotape TBDA and A HD models.
We determine the most suitable Robotape configuration for your production line, ensuring long-lasting and efficient operation.
