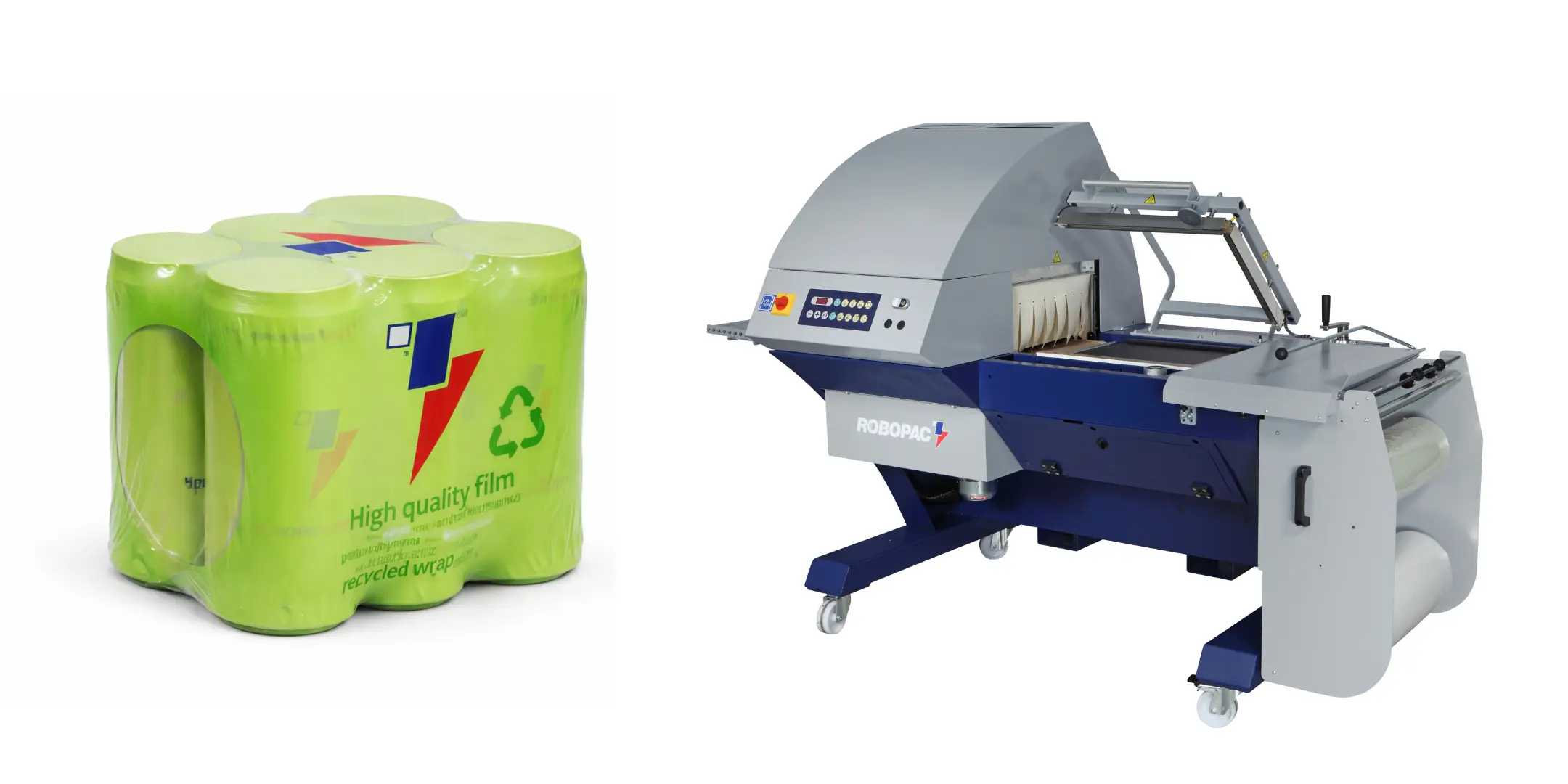

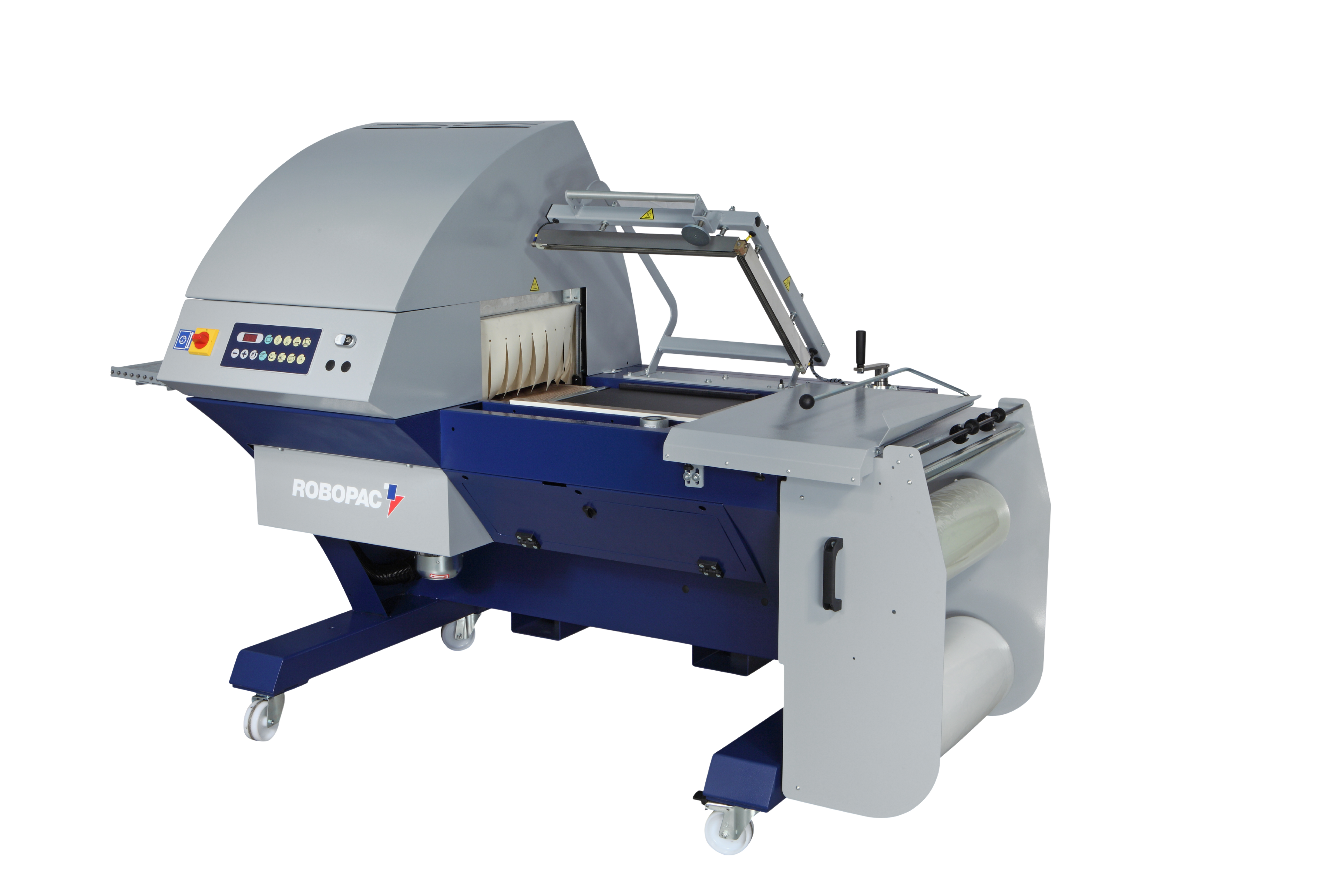

Robopac Pack Manual Filming and Shrinking Machine
Product Description
Robopac Pack Series Manual Chamber Film Wrapping + Shrink Machine is a compact shrink packaging solution that combines film wrapping and shrinking processes within a single integrated system.
With its manual chamber-type loading structure, products are placed inside the chamber by the operator and wrapped with film.
The sealing process is performed using the “L-sealing system” integrated into the frame.
After sealing, the product is automatically transferred via a conveyor belt to the heat shrink tunnel.
Inside the tunnel, the film tightly conforms to the product, completing the shrink process.
Once finished, the product exits the tunnel automatically and is discharged via the conveyor system.
The Pack series consists of four models: PACK 5040M, PACK 6050M, PACK 5040A, and PACK 6050A.
In “M” models, the chamber is closed manually by the operator, while in “A” models, the chamber closing is pedal-controlled for easier operation.
Advantages & Key Features
- Manual Chamber Film Wrapping: Provides controlled and safe packaging.
- L-Sealing Unit: Ensures clean and strong film sealing.
- Automatic Transfer to Shrink Tunnel: Seamless transition after sealing.
- Efficient Heat Shrinking: Uniform and high-quality shrink results.
- Manual (M) and Pedal-Controlled (A) Options: Flexible operation alternatives.
- Wide Film Compatibility: Works with PP, PVC, Polyolefin, and PE films.
- Compact Design: Space-saving integrated shrink solution.
Applications
Robopac Pack Series is ideal for small to medium-scale shrink packaging applications in industries such as food, cosmetics, printing, textile, promotional products, medical, and retail packaging.
Its manual loading system provides flexibility and efficiency for low-volume and variable production environments.
Technical Details & Models
| Model | Product Size (W × L × H) | Chamber Closing | Film Types | Shrinking |
|---|---|---|---|---|
| PACK 5040M | 500 × 400 × 200 mm | Manual | PP, PVC, Polyolefin, PE | Automatic heat tunnel |
| PACK 6050M | 600 × 500 × 200 mm | Manual | PP, PVC, Polyolefin, PE | Automatic heat tunnel |
| PACK 5040A | 500 × 400 × 200 mm | Pedal-controlled | PP, PVC, Polyolefin, PE | Automatic heat tunnel |
| PACK 6050A | 600 × 500 × 200 mm | Pedal-controlled | PP, PVC, Polyolefin, PE | Automatic heat tunnel |
Why Choose Robopac Pack Series?
Robopac Pack Series combines the flexibility of manual film wrapping with the efficiency of automatic shrinking.
Its compact design, multiple model options, and integrated shrink tunnel provide a cost-effective, reliable, and professional packaging solution.
It is the ideal choice for businesses seeking high packaging quality with low investment cost.
As Pakmak Ambalaj, we offer pre-sales consultancy, installation, technical service, and spare parts support for the Robopac Pack Series.
We help you select the most suitable shrink solution for your operation, ensuring maximum efficiency in your packaging processes.
