Robopac Masterplat Table Top Printing Stretch Machine
Product Description

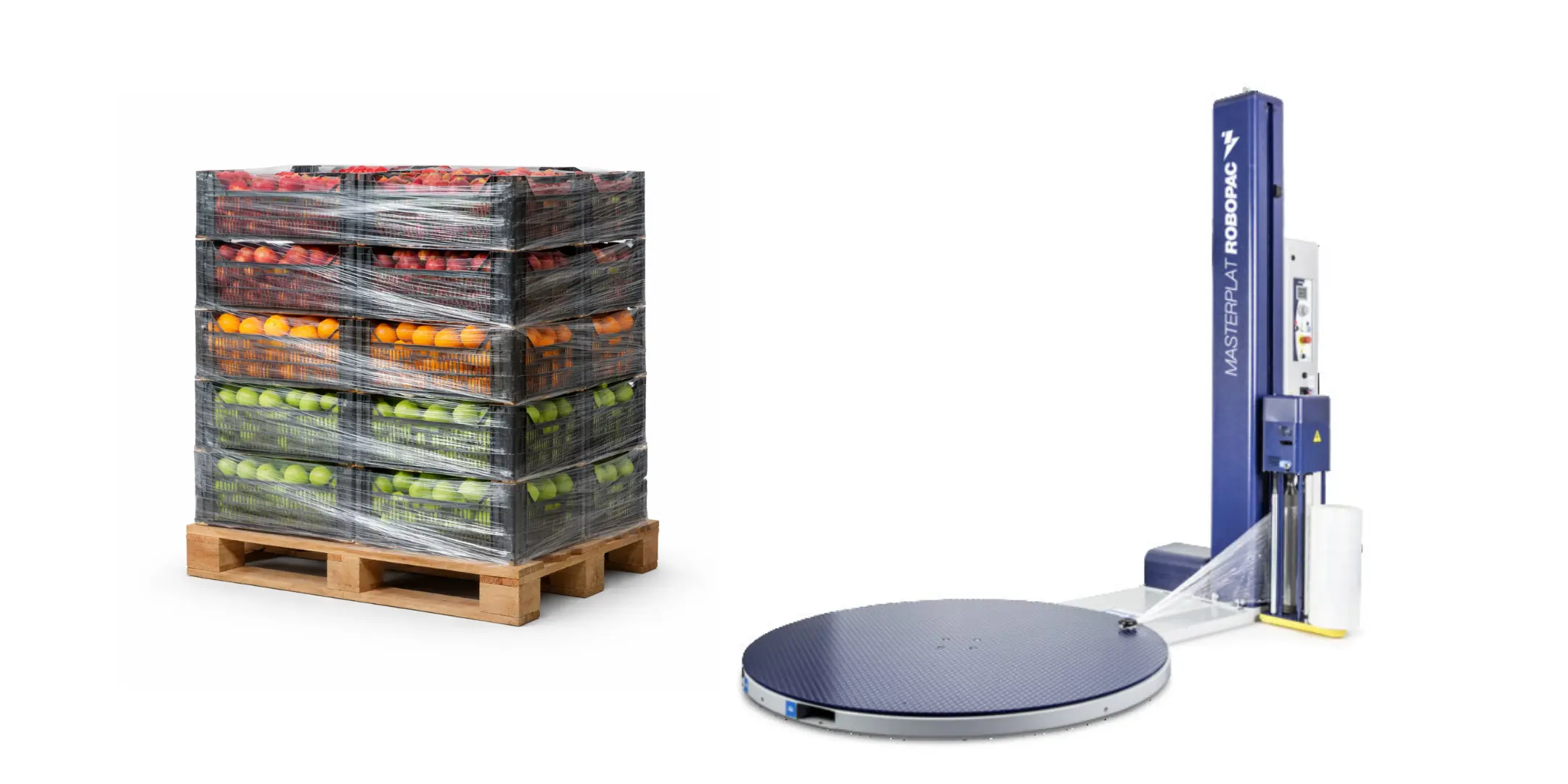

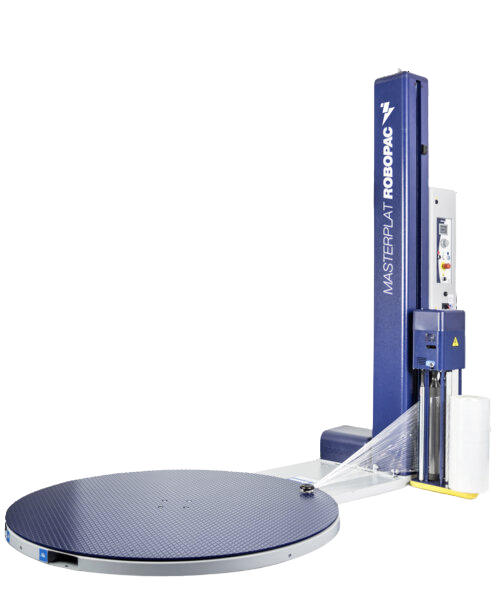

Robopac Masterplat TP Top Press Turntable Stretch Wrapping Machine,
is a fully automatic turntable stretch wrapping machine developed for safely wrapping
light, unstable, and loose palletized loads at risk of shifting.
During wrapping, the pneumatic top press system stabilizes the load from above,
eliminating the negative effects of centrifugal force.
This structure ensures balanced, tight, and homogeneous wrapping, especially for light and airy products.
The Masterplat TP model is available with FRD (mechanical brake) and
PGS (motorized pre-stretch) units,
allowing the stretch film to be extended up to 300% and providing significant savings in film consumption.
Advantages & Key Features
- Pneumatic Top Press Unit: Stabilizes light and unstable loads during wrapping.
- FRD Mechanical Stretch Unit: Provides film elongation by tensioning the film over the load.
- PGS Motorized Pre-Stretch Unit: Extends film up to 300%, enabling up to 4x film savings.
- Digitally Adjustable System: Turntable speed and film carriage speed can be adjusted via the display.
- Automatic Reinforced Middle Wrapping: Enhances load stability with additional wrapping at the center.
- Optional Top Press Variants: Pneumatic top press system available for light loads.
- Pallet Truck Compatible Design: Optional ramp or in-ground installation available.
Applications
Robopac Masterplat TP is especially preferred in industries where
light, unstable, loose, or airy products need to be wrapped on pallets.
Main application areas include
food, beverage, textile, plastic, cardboard, packaging, and logistics.
Thanks to the top press system, loads are secured and prepared for shipment safely without shifting.
Technical Details & Options
- Machine Type: Turntable, top press, fully automatic stretch wrapping machine
- Stretch Units: FRD (mechanical brake) / PGS (motorized pre-stretch)
- Film Stretch Ratio: Up to 300% (PGS)
- Turntable Speed: Adjustable via digital display
- Film Carriage Speed: Adjustable via digital display
- Wrapping Height: Standard 2200 mm – Optional 3100 mm
- Turntable Diameter: 1650 mm
- Loading: Suitable for pallet truck entry, optional ramp or in-ground installation
- Options: Automatic middle wrapping, pneumatic top press, different press types
Why Choose This Machine?
Robopac Masterplat TP provides maximum stability and safety when wrapping light and unstable loads.
Thanks to the pneumatic top press system, loads are secured during wrapping, preventing film breakage and product scattering.
While the PGS pre-stretch technology reduces film consumption, digitally adjustable speed and wrapping parameters offer production flexibility.
With durable Robopac engineering and Pakmak Packaging’s after-sales support,
Masterplat TP is a professional stretch wrapping solution designed for long-term reliable use.
