Robopac Masterplat Lp Thin Table Stretch Machine
Product Description

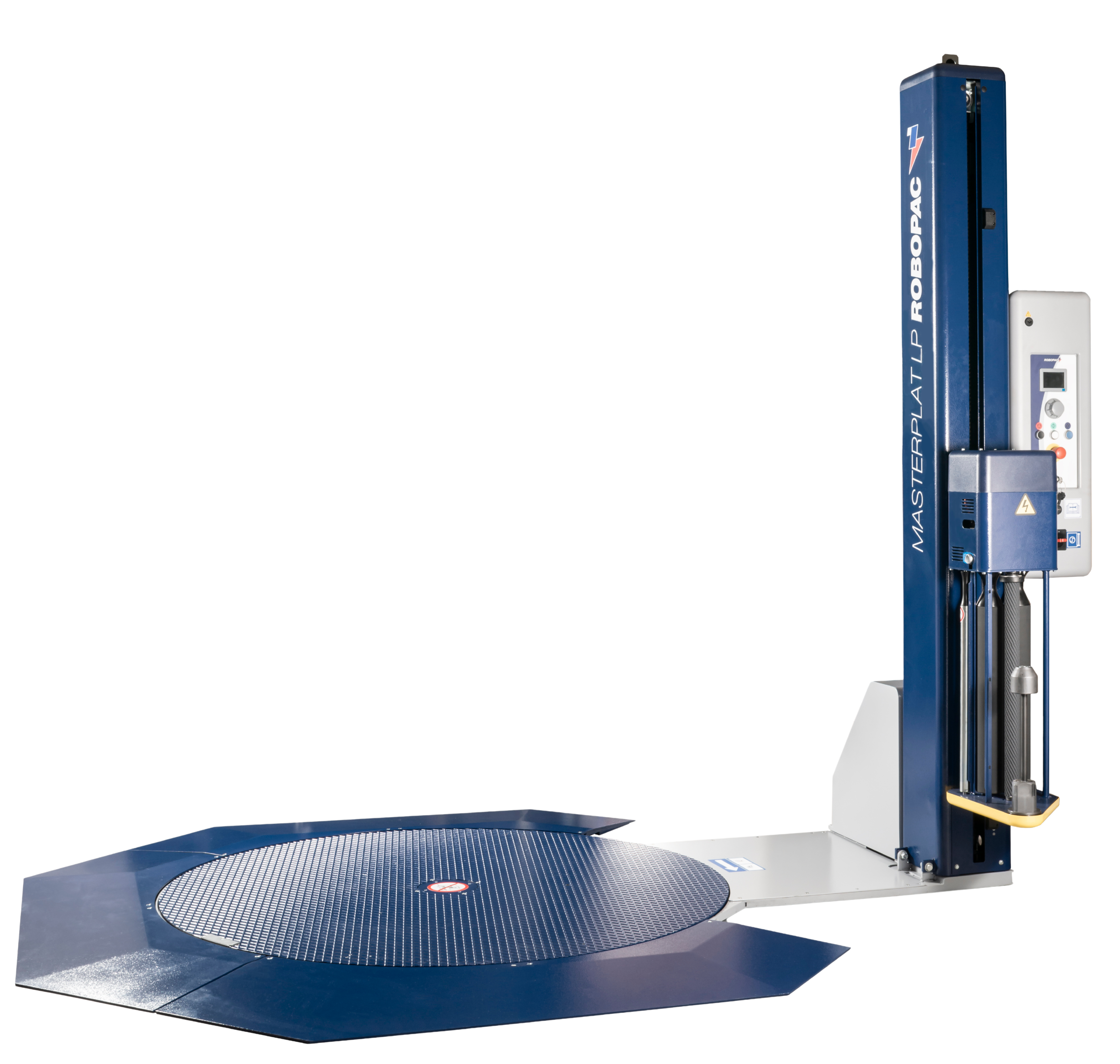

Robopac Masterplat LP Low Profile Turntable Stretch Wrapping Machine,
is a pallet wrapping solution specifically developed for facilities using pallet trucks, thanks to its
low turntable height.
With a turntable height of only 30 mm (3 cm), it operates with Robopac’s
patented gear drive system, offering much quieter and longer-lasting performance compared to chain-driven systems.
While standard turntable machines require long ramps due to their 10–12 cm height,
the Masterplat LP model requires only a short 30 cm ramp.
This structure prevents pallet shaking during loading and minimizes the risk of tipping.
It delivers speed, safety, and ergonomics simultaneously in environments where pallet trucks are used.
Advantages & Key Features
- Low Profile Turntable: Easy and safe pallet truck loading with only 3 cm table height.
- Short Ramp Requirement: Entry and exit with only a 30 cm ramp.
- Patented Gear Drive: Quiet operation, high durability, and low maintenance cost.

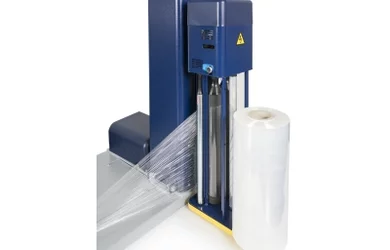

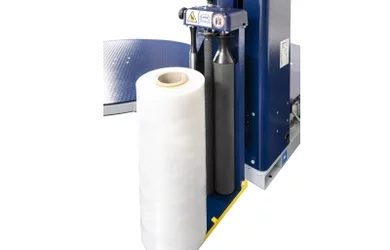

- 300% Pre-Stretch Unit: Stretch film can be extended up to 4 times, providing significant film savings.

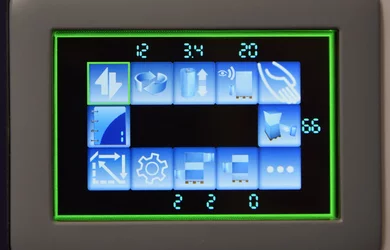

- Digital Tension Control: Adjustable tension settings for different sections of the pallet.
- High Safety: Low incline loading eliminates the risk of product tipping.
- Ergonomic Use: Practical and safe structure that reduces operator fatigue.
- Industrial Durability: Robust body suitable for intensive multi-shift operations.
Applications
Robopac Masterplat LP is an ideal solution especially for
production and warehouse environments using pallet trucks.
It is widely preferred in food, beverage, packaging, chemical, logistics, and construction industries where high safety, fast loading, and low film consumption are required.
Thanks to its low-profile structure, it improves occupational safety standards while reducing operation time.
Technical Details & Options
| Feature | Value |
|---|---|
| Turntable Height | 30 mm (Low Profile) |
| Drive System | Robopac patented gear drive system |
| Ramp Length | 30 cm |
| Film Stretch Unit | FRD / PGS – 300% motorized pre-stretch |
| Film Saving | Up to 4 times |
| Turntable Diameter | 1650 mm |
| Wrapping Height | 2200 mm (optional 3100 mm) |
| Maximum Pallet Weight | 2000 kg |
| Options | Automatic film cutting, top press, in-ground kit, high mast |
Why Choose This Machine?
Robopac Masterplat LP is one of the safest and most ergonomic stretch wrapping solutions for facilities using pallet trucks.
Its low-profile turntable accelerates the loading process, while the 300% pre-stretch technology significantly reduces stretch film costs.
Offered with Pakmak Packaging assurance, Masterplat LP is an ideal choice for businesses seeking
lower risk, reduced film consumption, and higher efficiency.
