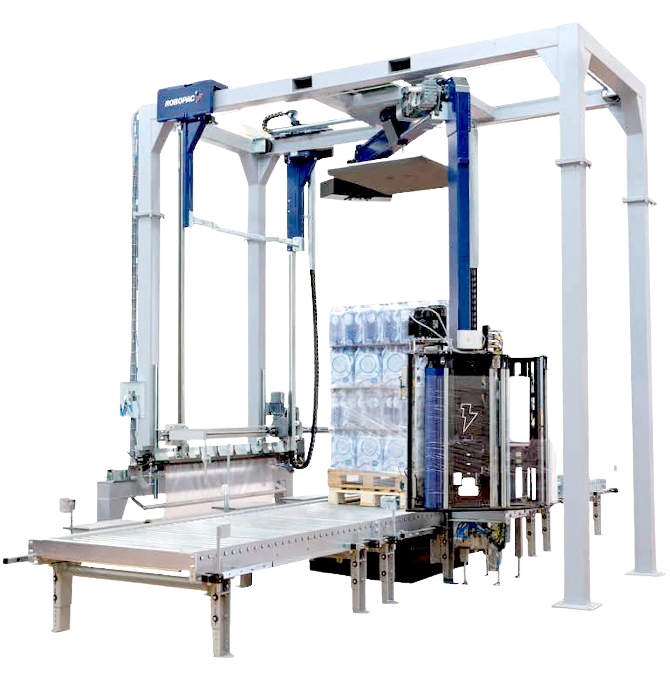

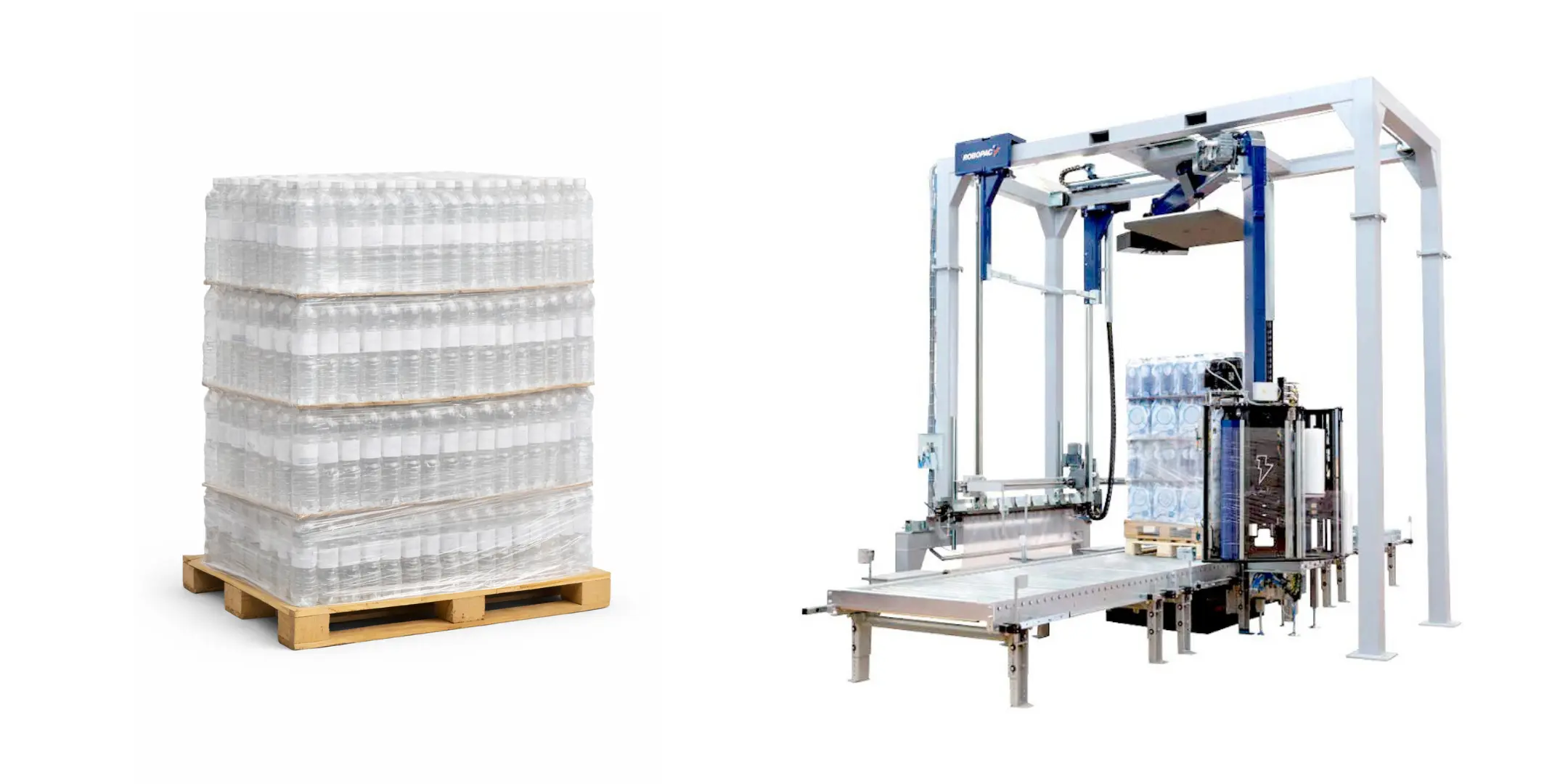

Robopac Helix Max Fully Automatic Pallet Stretch Machine
Product Description
Robopac Helix Max Fully Automatic Pallet Stretch Wrapping Machine is an industrial solution that combines high speed, low film consumption, and superior load stabilization with its rotary arm architecture.
Positioned in the upper segment of the Helix series, Helix Max delivers continuous performance in intensive production lines with a capacity of up to 120 pallets per hour.
Thanks to Robopac’s patented Cube Technology software, film delivery, tension, and application profile are intelligently managed layer by layer; thus, film consumption is minimized with up to 400% pre-stretch, while pallet stability is maximized.
Advantages & Key Features
- High capacity: Automatic wrapping up to 120 pallets/hour.
- Rotary arm architecture: The pallet remains stationary; ensures safe wrapping for unstable or tip-prone loads.
- Cube Technology (Level 1/2): Up to 50% consumption savings with layer-based intelligent film management.
- 400% pre-stretch: Dual-motor, digitally adjustable pre-stretch unit.
- Fully automatic cycle: Film cutting & sealing without manual intervention; fast and repeatable wrapping.
- Wide option set: Top press, automatic corner applicator, roping, top cover, pallet lifting.
- Industry 4.0 compatibility: PLC–HMI infrastructure, data collection, and remote monitoring/diagnostics.
- Low operating cost: Energy-efficient servo drive and low maintenance requirements.
Applications
Helix Max is ideal for applications requiring high speed and high stabilization in fully automatic lines.
It provides reliable and cost-effective wrapping especially in food & beverage, chemical, white goods, construction materials, corrugated cardboard, logistics, and similar industries under intensive shift conditions.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Model | Robopac Helix Max |
| Machine Type | Rotary Arm Fully Automatic Pallet Stretch Wrapping System |
| Wrapping Capacity | 120 pallets/hour |
| Pre-Stretch | Up to 400% (dual motor, digitally controlled) |
| Smart Film Management | Cube Technology™ (Level 1 / Level 2 – optional) |
| Control System | PLC + HMI Touchscreen |
| Pallet Size Compatibility | 800 × 600 mm – 1900 × 1900 mm |
| Optional Units | Top press, top cover, roping, automatic corner applicator, pallet lifting unit |
| Film Type | LLDPE machine-grade stretch film (7–35 μm) |
| Industry 4.0 | Remote access, data logging, and reporting |
Why Should You Choose This Machine?
Robopac Helix Max offers high speed, intelligent film optimization, and a flexible modular structure on a single platform.
It ensures maximum stabilization with minimum film consumption in intensive production lines, while reducing cycle times with fully automatic cut-and-seal operations.
As Pakmak Ambalaj, we integrate Helix Max into your facility with the most suitable configuration through site inspection, sales, installation, training, and technical service, turning it into a long-lasting and sustainable investment.
