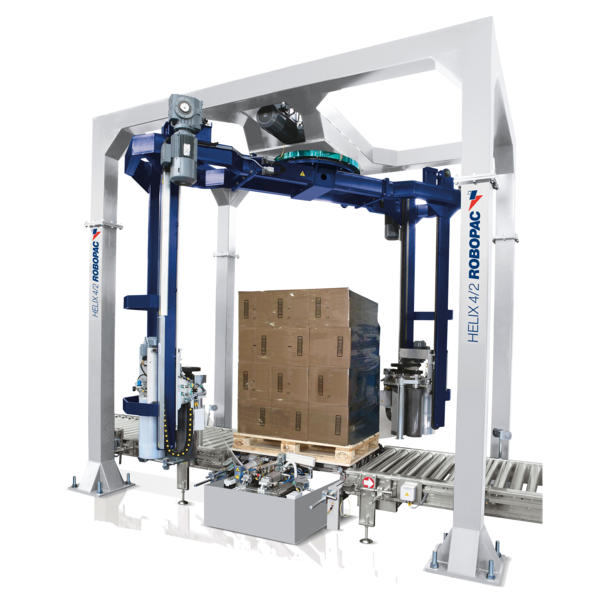

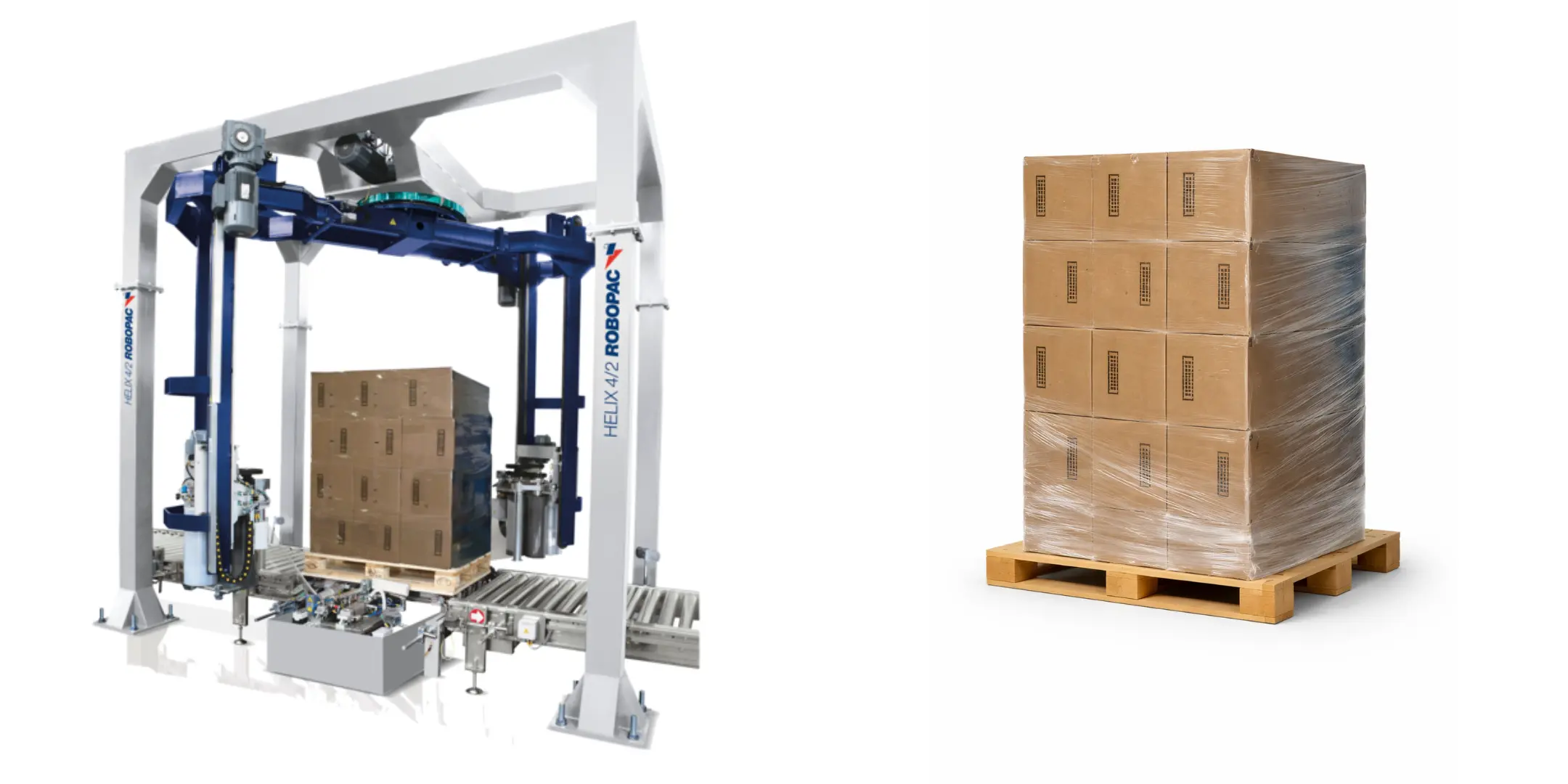

Robopac Helix Fully Automatic Stretch Machine
Product Description
Robopac Helix Fully Automatic Stretch Wrapping Machine is the highest-capacity model among Robopac’s rotary arm fully automatic stretch wrapping systems.
With its dual independent rotary arm system operating simultaneously, the Helix 4/2 offers a wrapping capacity of up to 150 pallets per hour.
This structure ensures both maximum production speed and minimum downtime.
The machine is equipped with Robopac’s patented Cube Technology system.
This system digitally optimizes stretch film thickness and pre-stretch ratio according to product shape, providing up to 50% film savings and excellent load stabilization.
Helix 4/2 features a fully automatic cut-and-seal function, requiring no operator intervention.
Optionally, it can be integrated with top cover unit, roping system, corner applicator, top press, and pallet lifting unit.
Advantages & Key Features
- Dual Rotary Arm Technology: Simultaneous wrapping with two arms, up to 150 pallets/hour capacity.
- Cube Technology: Film thickness and tension can be digitally adjusted.
- Energy Efficiency: Low energy consumption with servo motor-controlled system.
- Fully Automatic Operation: Cutting and sealing performed without manual intervention.
- Superior Stabilization: Ensures safe and balanced load securing.
- Industry 4.0 Compatibility: Smart data analysis, reporting, and remote access.
- Optional Modules: Top press, corner applicator, top cover, roping, and lifting unit.
Applications
Helix 4/2 Fully Automatic Stretch Wrapping Machine delivers maximum efficiency in fully automatic lines with high production speeds.
It is especially used in industries such as food, beverage, chemical, white goods, construction, corrugated cardboard, and logistics.
Thanks to its fixed pallet rotary arm technology, it provides optimal safety for light, unstable, or high tip-risk loads.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Model | Helix 4/2 |
| Machine Type | Dual Arm Fully Automatic Rotary Arm Pallet Stretch Wrapping Machine |
| Wrapping Capacity | 150 pallets/hour |
| Pre-Stretch Ratio | Up to 400% (Cube Technology supported) |
| Control System | PLC + HMI Touchscreen |
| Pallet Size Compatibility | 800 × 600 mm – 1900 × 1900 mm |
| Optional Units | Top press, top cover, roping, corner applicator, pallet lifting unit |
| Energy Consumption | Low energy system with servo motors |
| Film Type | 7–35 Micron LLDPE Stretch Film |
| Industry 4.0 Compatibility | Available (Remote access & data tracking) |
Why Should You Choose This Machine?
Robopac Helix Fully Automatic Stretch Wrapping Machine is developed for maximum performance in high-speed automation lines.
Its dual-arm synchronized structure increases production capacity while reducing film consumption.
Equipped with Cube Technology, this model ensures energy efficiency, film optimization, and perfect load stability.
With Pakmak Ambalaj’s assurance in sales, installation, training, and technical service, Helix 4/2 has become the most reliable automatic stretch wrapping solution for industrial-scale operations.
