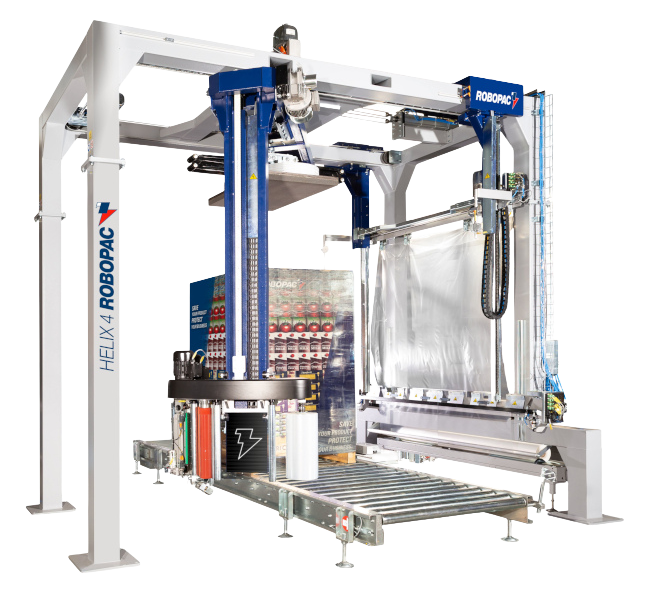

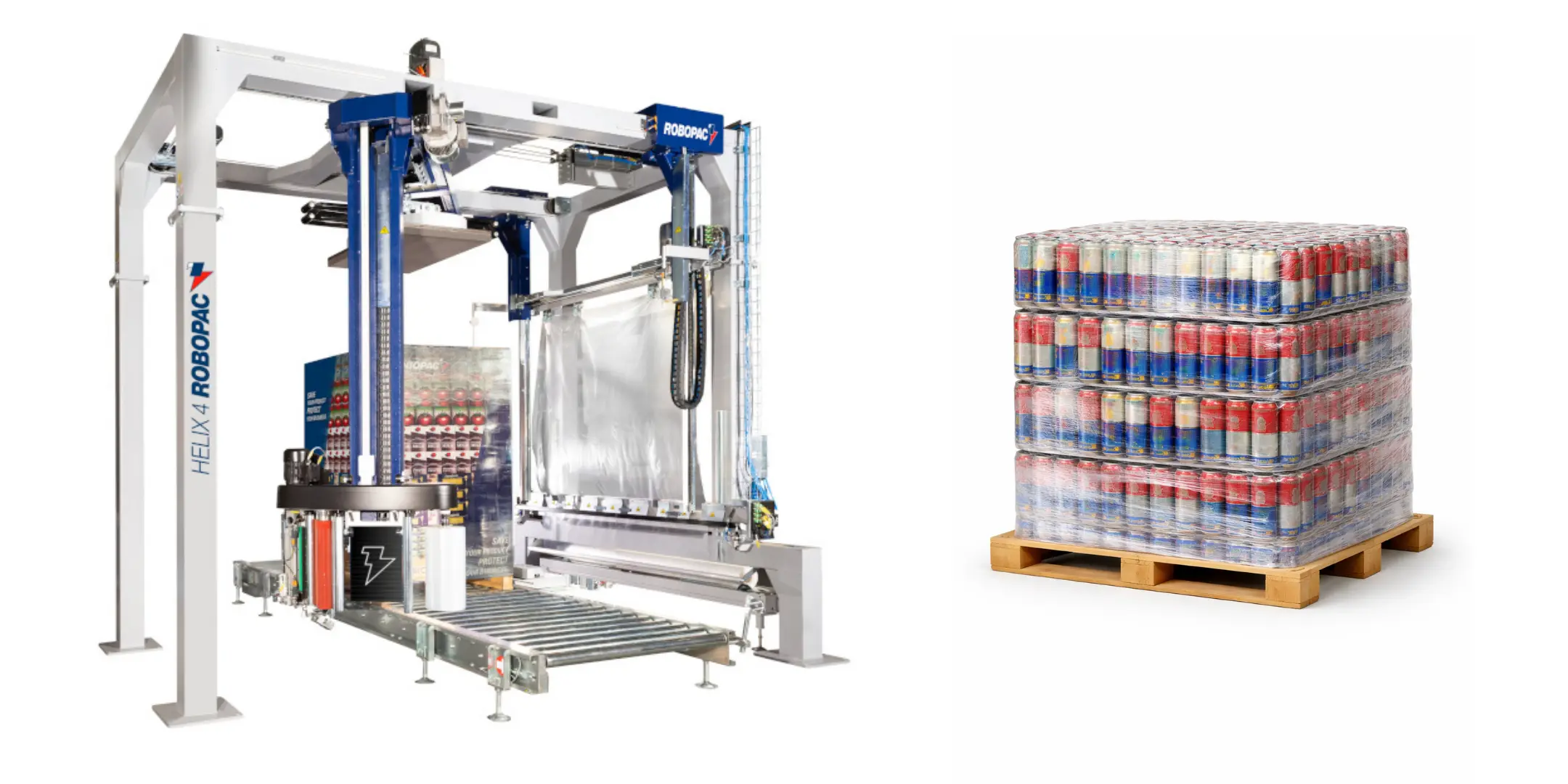

Robopac Helix Evo 4 Fully Automatic Pallet Stretching Machine
Product Description
Robopac Helix Evo 4 Fully Automatic Pallet Stretch Wrapping Machine is one of the most powerful models among Robopac’s high-speed rotary arm automatic stretch wrapping systems.
Designed to meet high-capacity requirements in industrial production lines, Helix Evo 4 offers a wrapping capacity of up to 90 pallets per hour.
Equipped with Robopac’s patented Cube Technology system, Helix Evo 4 digitally optimizes stretch film thickness and pre-stretch ratio according to the shape of each product.
This ensures up to 50% film savings while maximizing load stabilization on the pallet.
With optionally integrated modules — top cover unit, roping system, pallet lifting unit, automatic corner applicator, and top press — the machine can be configured to suit different product types across various industries.
Advantages & Key Features
- High Capacity: Fully automatic stretch wrapping up to 90 pallets/hour.
- Cube Technology: Stretch film thickness and tension can be digitally adjusted.
- Energy Efficiency: Low energy consumption with optimized servo motor system.
- Rotary Arm System: Safe wrapping at high speed on a fixed pallet.
- Flexible Configuration: Optional modules such as top press, roping, corner applicator, and top cover.
- Fully Automatic Operation: Cutting, sealing, and wrapping without forklift or operator intervention.
- Industry 4.0 Compatibility: Smart data tracking and remote access system.
Applications
Helix Evo 4 is designed for fully automatic production lines requiring high speed and precision.
It is especially preferred in industries such as food, beverage, chemical, packaging, corrugated cardboard, construction materials, white goods, and logistics.
Thanks to its fixed pallet position and rotary arm principle, it provides an ideal solution for light, unstable, or tip-prone loads.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Model | Helix Evo 4 |
| Machine Type | Rotary Arm Fully Automatic Pallet Stretch Wrapping Machine |
| Wrapping Capacity | 90 pallets/hour |
| Pre-Stretch Ratio | Up to 400% (with digital Cube Technology) |
| Control System | PLC + HMI Touchscreen |
| Pallet Size Compatibility | 800 × 600 mm – 1900 × 1900 mm |
| Optional Units | Top press, top cover, roping, corner applicator, lifting platform |
| Energy Consumption | Low – Servo-controlled energy management |
| Film Type | 7–35 Micron LLDPE Stretch Film |
| Industry 4.0 Compatibility | Available (Remote monitoring & data analysis support) |
Why Should You Choose This Machine?
Robopac Helix Evo 4 is an industrial-grade automatic stretch wrapping solution that combines high speed, energy efficiency, and film savings.
Thanks to the precise control offered by Cube Technology, perfect wrapping results are achieved for every product type.
With its optional modular systems, it fully integrates into your production line and ensures maximum operational continuity.
With Pakmak Ambalaj’s assurance in sales, installation, and technical service, Helix Evo 4 offers a long-lasting and sustainable investment.
