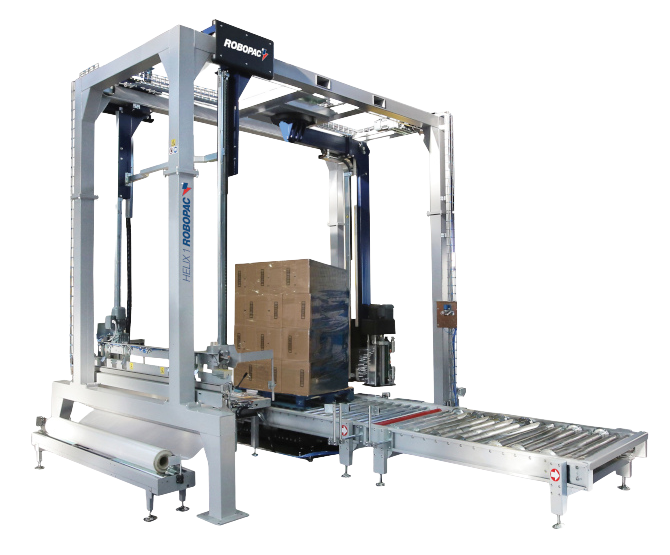

Robopac Helix Evo 1 Fully Automatic Pallet Stretching Machine
Product Description
Robopac Helix Evo 1 Fully Automatic Pallet Stretch Wrapping Machine is one of the most efficient models in Robopac’s rotary arm fully automatic stretch wrapping series.
Designed for medium to high-speed requirements in industrial production lines, this model has a capacity of up to 65 pallets per hour.
Helix Evo 1 delivers high performance even in confined spaces thanks to its fixed pallet working principle.
With the Cube Technology system, stretch film thickness, pre-stretch ratio, and film application speed are digitally optimized.
This technology ensures up to 50% film savings while providing high stabilization and flexibility for all pallet types.
The machine operates with a fully automatic cutting and sealing system, enabling a continuous wrapping cycle without operator intervention.
Optionally, it can be configured with a top press, corner applicator, roping system, pallet lifting unit, and top cover unit.
Advantages & Key Features
- Medium-High Capacity: Fully automatic wrapping capacity of up to 65 pallets/hour.
- Cube Technology: Stretch film thickness and tension are digitally controlled.
- Rotary Arm System: Provides safe and stable wrapping on a fixed pallet.
- Fully Automatic Operation: Film cutting and sealing are performed without manual intervention.
- Film Savings: Maximum efficiency with up to 400% pre-stretch ratio.
- Flexible Configuration: Modular structure for different product types (press, corner applicator, etc.).
- Industry 4.0 Compatibility: Integrated with smart production monitoring and data analysis systems.
Applications
Robopac Helix Evo 1 is designed for fully automatic stretch wrapping of palletized products requiring high stabilization.
It is especially preferred in industries such as food, beverage, chemical, construction materials, corrugated cardboard, white goods, and logistics.
Thanks to its fixed pallet structure, it provides superior safety for light, unstable, or tip-prone loads.
Technical Details & Specifications
| Feature | Value |
|---|---|
| Model | Helix Evo 1 |
| Machine Type | Rotary Arm Fully Automatic Pallet Stretch Wrapping Machine |
| Wrapping Capacity | 65 pallets/hour |
| Pre-Stretch Ratio | Up to 400% (with Cube Technology) |
| Control System | PLC + HMI Touchscreen |
| Pallet Size Compatibility | 800 × 600 mm – 1900 × 1900 mm |
| Optional Units | Top press, top cover, roping, corner applicator, lifting unit |
| Energy Consumption | Low (Servo-controlled motor system) |
| Film Type | 7–35 Micron LLDPE Stretch Film |
| Industry 4.0 Compatibility | Available (Remote monitoring & data tracking) |
Why Should You Choose This Machine?
Robopac Helix Evo 1 Fully Automatic Pallet Stretch Wrapping Machine is a perfect example of intelligent wrapping solutions that deliver high speed, energy efficiency, and film savings.
Thanks to Cube Technology, film tension is optimized for each product type, reducing both film consumption and wrapping time.
With Pakmak Ambalaj’s assurance in sales, installation, and technical service, Helix Evo 1 is the ideal choice for all production facilities seeking automation-driven efficiency.
